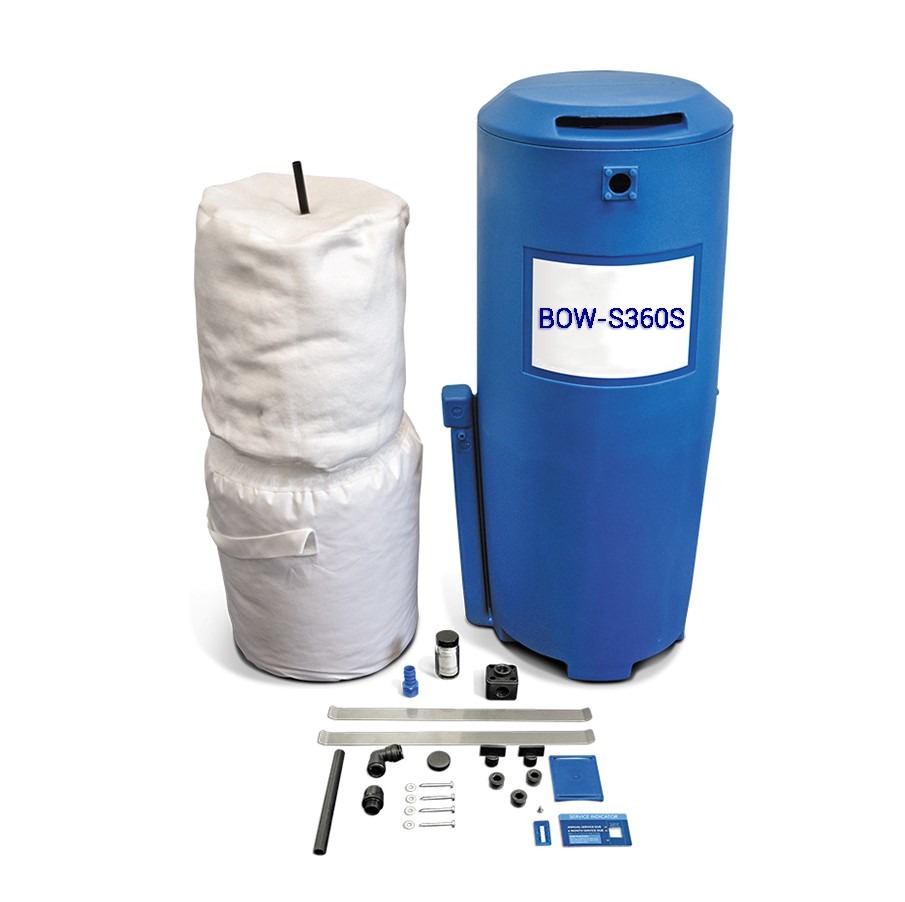

Tanair BOW-S360S | 360 CFM Oil Water Separator

We are pleased to offer a range of condensate products that cannot be beaten for quality or value.

HIGHLIGHTS:

• Carbon-less filtration
• Works first time – every time
• 100% performance on most synthetics
• 4000 hours filter life
• Better than 5ppm achieved at installation
• Will not overflow
• Consistent performance
• Simple installation and no pre-soaking
• Low maintenance
• Rapid servicing
• Lightweight handling
• British designed and British built

The water resources act was introduced to place legal restrictions on industrial discharges either to ground, to waterway or storm-water drain – with good reason.

Just 250ml of oil can cover acres of water surface, reducing the effectiveness of treatment plants, preventing oxygenation, and killing wildlife. A modest 18kW compressor might generate close to ten thousand litres of condensate each year, often containing up to 1000ppm of oil and other waste at the point of discharge.

99.9% of condensate is water, so it makes sense to clean it on site before discharge to the sewer. Outlet to the sewer system is controlled by local authorities, which do not usually allow discharges containing more than 20ppm of oil to be introduced to the drains. Expectations are that limits will reduce in the future; some European countries already insist on a maximum of 10ppm FPS offer the most economical, simple, reliable and environmentally sound method of complying with the legal requirements – with outlet quality better than 10ppm for up to 4000 hours of filter life in many applications. We also offer special filters for specific ‘problem’ condensates – call us for details.

Tanair oil-water separators – it’s so simple…

Sometimes, keeping it simple keeps it working! With Tanair Compressors there’s no moving parts and no stagnant reservoir of condensate to breed unhealthy bacteria. There’s no need to guess the height of the oil overflow because there isn’t one, so there’s no blockages or floods either. It also means there’s no oil container to deal with, because all the oil is retained in the filters. It’s easy to select the right Tanair Compressors separator; it’s quick and fool proof to install; clean and simple to service, and we believe in most cases it’s also the most economical tool for the job. Tens of thousands of installations world-wide experience product satisfaction.

Service life indicator

This clever device is activated in seconds by the installing service engineer. The active strip gives a time based visual indication of the service interval, up to one full year. A fresh indicator set is provided with each new service kit, while a fitment upgrade for existing separators is also supplied with each new service kit, ensuring the feature is available for retro-fit to older installed Tanair Compressors separators. The service life indicator can also be easily fitted to other makes of separator.

Treating stable emulsions In our experience, no ‘passive’ oil/water separator handles stable emulsions effectively. Something has to be ‘active’ to make that essential separation happen. Tanair Compressors ‘D’ has the active ingredient… Our specially activated digester kits are purpose designed to deal with those difficult condensate mixtures that simply won’t separate in a simple filter – whether carbon, polypropylene, zeolite or any other ‘passive’ material. Tanair Compressors’ ingenious answer is an active biological creation that literally eats the oil, leaving clear water behind. When compared to the expensive electro mechanical alternatives available, our digester kit offers a low-cost, easily maintained and environmentally sound answer to a problem that’s as old as the condensate management industry – but it took Tanair Compressors have the answer.

Installation benefits We recognise that space is at a premium – not least in the average compressor house. That’s one reason why the Tanair Compressors oil/water separator is designed the way it is, with the smallest footprint of any separator size-for-size, with the ability to accept flexible tube to its inlet block, with no separate oil container, and with all servicing access from the top. Tanair Compressors has a complete range of condensate management products working in harmony to make the job easy and the result first class.

Tanair Compressors oil/water separator specifications assume well maintained compressor plant and reasonable operating conditions. Performance on mineral or mineral-based lubricants should be as above, irrespective of compressor type, condensate drain technology or climate, provided the condensate produced is not a stable emulsion. Where stable or difficult emulsions are encountered, choose the Tanair Compressors ‘D’ separator with its special digester service kits designed for the task. Polyalkylimide glycol (PAG) coolants/lubricants present a different challenge as they are based on water-soluble components. Free (non-dissolved) components will be removed by Tanair Compressors S or D separators leaving a ‘clear’ outlet fluid, but we advise that the separator should be down-rated to 50% of normal capacity to allow more time for adsorption to take place. IMPORTANT NOTE: Tanair Compressors uses the revolutionary filter medium SILEXA™ in genuine SSK service kits. Ordinary carbon bags would reduce the separators’ capacity by at least 20% and their service life by 50%. Our digester kits are carbon-based but specially treated to handle emulsified condensate. Untreated carbon will inevitably fail in such applications.

Image or Style may change without prior notice.
