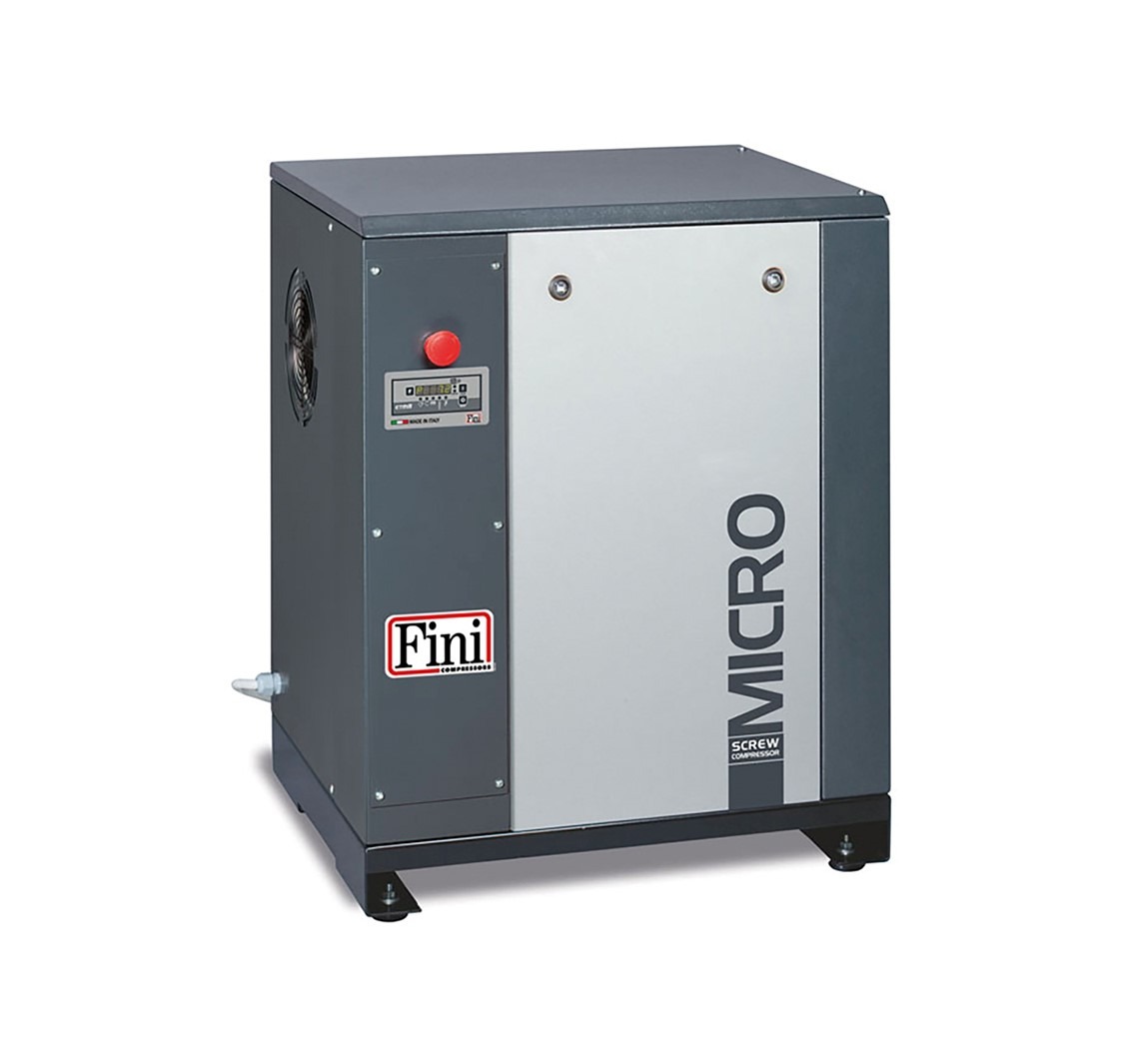

Fini MICRO 408 (With Controller) Rotary Screw Air Compressor

Fini MICRO 408 (With Controller)/ F-V51JR92FNMA60 Advanced and silenced rotary screw air compressor with high output suitable for high usage. Utilising long life POLY-V belt drive, simple controls and with easy care/maintenance. Designed for long life, high output and continuous reliability along with extremely low noise levels. Available floor mounted, receiver mounted, with on board refrigerated dryer and fitted with Simple Electro-mechanical control. HIGHLIGHTS: Compact design and very quiet operation -suitable for direct installation in the working environment for maximum convenience and reduced installation. Controller with multi-function backlight display Pressure Oil Temperature Total working hours Compressor status and Hours to next service. Advanced cooling system - The deployment of the thermostatically controlled centrifugal fan reduces noise and saves energy. The large surface area coolers for the air and oil ensures cool operation and lower air outlet temperatures even at higher ambient temperatures. POLY-V belt drive system - Providing three times the service life of normal V belts (TYPICALLY 12000 Hours) with much greater drive efficiency improving output and saving power. IE3 High-efficiency Motors - Allowing reduced energy consumption. High-quality air - The MICRO is available with an onboard refrigerated dryer (ES models) ensuring dry compressed air benefits your system. Long life and reliability - The MICRO benefits from state-of-the-art manufacturing and over 50 years’ experience in the production of air compressors with most components designed and manufactured 'in-house'. Flexible Range - 2.2kW - 5.5kW with freestanding cabinet or with 200 Litre air receiver and with on board refrigerated dryer.

DESCRIPTION

ETMII Installed on models from 4kW to 15kW.

• Four maintenance timers (air cartridge, oil, oil filter, oil separator).
• Automatic re-start after power failure.
• Cooling fan temperature settable.
• Compressor remote start settable.
• Integrated sequence phase relay.

Controller with multi-function backlight display, the menu is alphanumeric type. In the main screen are displayed:

• Working pressure (offload/load);
• Oil temperature;
• Total working hours;
• On-load working hours;
• Compressor status led (stand-by, offload, load);
• Hours remaining before maintenance.

Our verdict: a 20.5 CFM 8 Bar Floor Mounted Air Compressor. If you have any questions about our Fini MICRO 408 (With Controller)/ F-V51JR92FNMA60 Rotary Screw Air Compressor, just ask, we are here to help!
