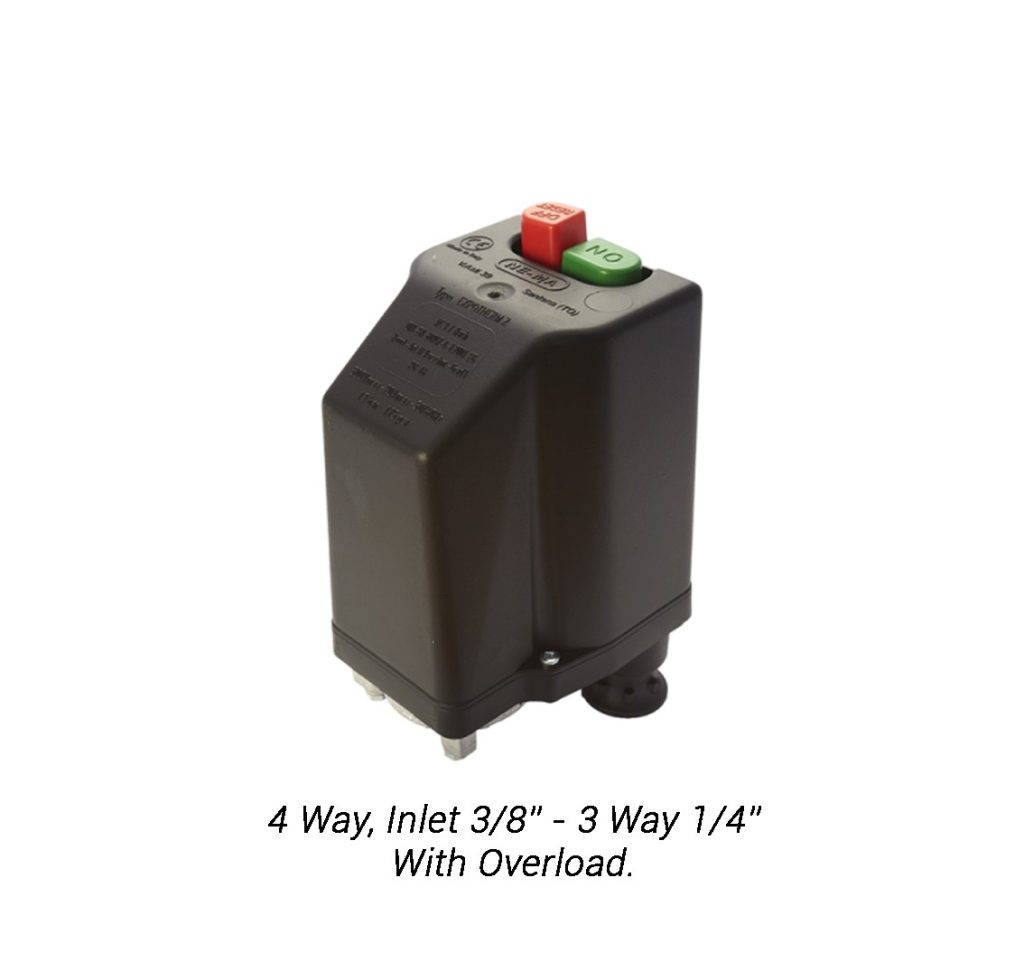

NEMA Pressure Switch Expotherm 2 (4 KW) | 12 BAR, 1/4, 4 Way, 3 Pole, 400 Volt with Overload 6.3 - 10a

Expotherm 2 three-phase pressure switch NE-MA 4-way - 3/8" +3 x 1/4" SB 20 with thermal motor protection 6.3-10 Amp

Three-phase pressure switch with built-in thermal protection

Available in the following amperages:
2-4 A / 4-6.3 A / 6.3-10 A / 10-16 A / 13-18 A / 17 - 23 A

Features:

- Three-pole
- Degree of protection IP42
- Nominal operating voltage 20 A
- Two cable glands pg 16
- Thermal Protection for circuit blocking in the event of overload
- 500 V three-phase 4.0 kW
- Discharge device with by-pass
- With ON/OFF switch device
- 4-way aluminium flange - Inlet 3/8" , Outlet 3 x 1/4" connections
- Unloader valve with quick connection 6.00 mm

All adjustments must be carried out with pressure switch

"All installation and connection of parts must be carried out by qualified personnel."
