Why Clean, Dry Compressed Air Matters for CNC Machinery
CNC equipment needs more than enough CFM. The air also needs to meet the machine manufacturer's requirements for moisture, particles, oil and pressure stability so valves, cylinders, optics and other sensitive components are properly protected.
Enough Air Is Only Half the Job
A CNC machine may receive the correct airflow and pressure yet still suffer reliability problems if the compressed air contains too much moisture, particulate contamination or oil.
Air quality should be specified from the machine manufacturer's requirement at the point of use. That requirement can differ significantly between a general pneumatic cylinder, a CNC machining centre and a laser-cutting application.
What Can Contaminate Compressed Air?
How Moisture Can Affect CNC Equipment
When compressed air cools, some of its water vapour can become liquid condensate. If that water passes through the system, it can affect pneumatic components and processes.
- Corrosion in valves, cylinders and downstream pipework
- Sticking or slow pneumatic movement
- Damage or premature deterioration of seals and components
- Water collecting in filter bowls and low points
- Process contamination where dry air is required
- Increased maintenance and production interruptions
What a Refrigeration Dryer Does
A refrigeration dryer cools compressed air so water vapour condenses. The liquid is separated and discharged, reducing the moisture content before air enters the downstream system.
It is a practical solution for many workshop and manufacturing applications, but it is not automatically suitable for every CNC process. If the machine requires a pressure dew point below what a refrigeration dryer can provide, a different drying technology may be needed.
How to Size a Refrigeration Dryer
Dryer sizing should not be based on compressor motor kW alone. Use the compressor's actual airflow and apply the manufacturer's correction factors for the real operating conditions.
| Factor | Why It Matters |
|---|---|
| Maximum airflow | The dryer must be able to treat the compressor's real delivered flow. |
| Inlet temperature | Hotter compressed air increases the moisture load and can reduce effective dryer capacity. |
| Ambient temperature | High plant-room temperatures can reduce refrigeration-dryer performance. |
| Operating pressure | Dryer correction factors vary with working pressure. |
| Required dew point | The machine specification determines whether refrigeration drying is adequate. |
| Future flow | Known system growth should be considered without uncontrolled oversizing. |
Why Several Filters May Be Needed
Different filtration stages target different contaminants. The correct combination should be driven by the air-quality specification rather than the assumption that more filters are always better.
| Filter Stage | Main Function | Selection Point |
|---|---|---|
| General-Purpose / Pre-Filter | Reduces larger particles and bulk liquid contamination. | Size for actual airflow and acceptable pressure drop. |
| Fine Coalescing Filter | Reduces fine water and oil aerosols. | Use where the downstream air-quality requirement calls for finer aerosol removal. |
| Activated Carbon | Helps reduce oil vapour and odour. | Use only where the application requires this additional treatment. |
| Point-of-Use Filtration | Adds treatment close to especially sensitive equipment. | Should complement rather than compensate for a poorly designed main system. |
ISO 8573-1: Follow the Machine Requirement
ISO 8573-1 classifies compressed-air purity for particles, water and oil. It is useful because machinery suppliers can state the air-quality class they require at the point of use.
Do not select a class simply because it sounds “cleaner”. The treatment system should achieve the class required by the machine or process while controlling pressure drop, maintenance cost and energy use.
Pressure Drop Matters as Much as Purity
Dryers and filters add resistance. As filter elements become contaminated, pressure drop can rise further.
- Size dryers and filters for the actual flow and operating conditions.
- Monitor pressure before and after treatment equipment.
- Replace elements according to manufacturer interval and condition.
- Check drains for blockage or constant air loss.
- Avoid increasing compressor pressure just to hide a blocked filter or restrictive pipework.
Pipework Can Re-Contaminate Clean Air
Air may leave the dryer and filters in good condition but arrive at the CNC machine contaminated if the downstream distribution system is rusty, badly drained or restrictive.
Design for Cleanliness
- Use suitable pipe material for the application.
- Provide drainage at appropriate low points.
- Use take-offs that reduce carryover of collected condensate.
- Keep the system internally clean during installation.
Design for Pressure
- Use adequate pipe diameter.
- Limit unnecessary bends and restrictions.
- Use correctly sized hoses and couplings.
- Provide practical isolation and future branch points.
Maintenance Keeps Air Quality Stable
| Component | Routine Checks | Warning Signs |
|---|---|---|
| Refrigeration dryer | Status, condenser cleanliness, drain operation and alarms. | Water downstream, abnormal temperature or fault indication. |
| Compressed-air filters | Differential pressure, element age, housing and drains. | Increasing restriction or contamination after the filter. |
| Automatic drains | Discharge, blockage and leaks. | Water build-up or continuous compressed-air loss. |
| Air receiver | Drainage, condition and statutory inspection requirements. | Excess water, corrosion or unstable system pressure. |
| Pipework | Leaks, supports, corrosion, low points and modifications. | Pressure loss, water at the machine or visible deterioration. |
Real Installation Example: KUT Machinery

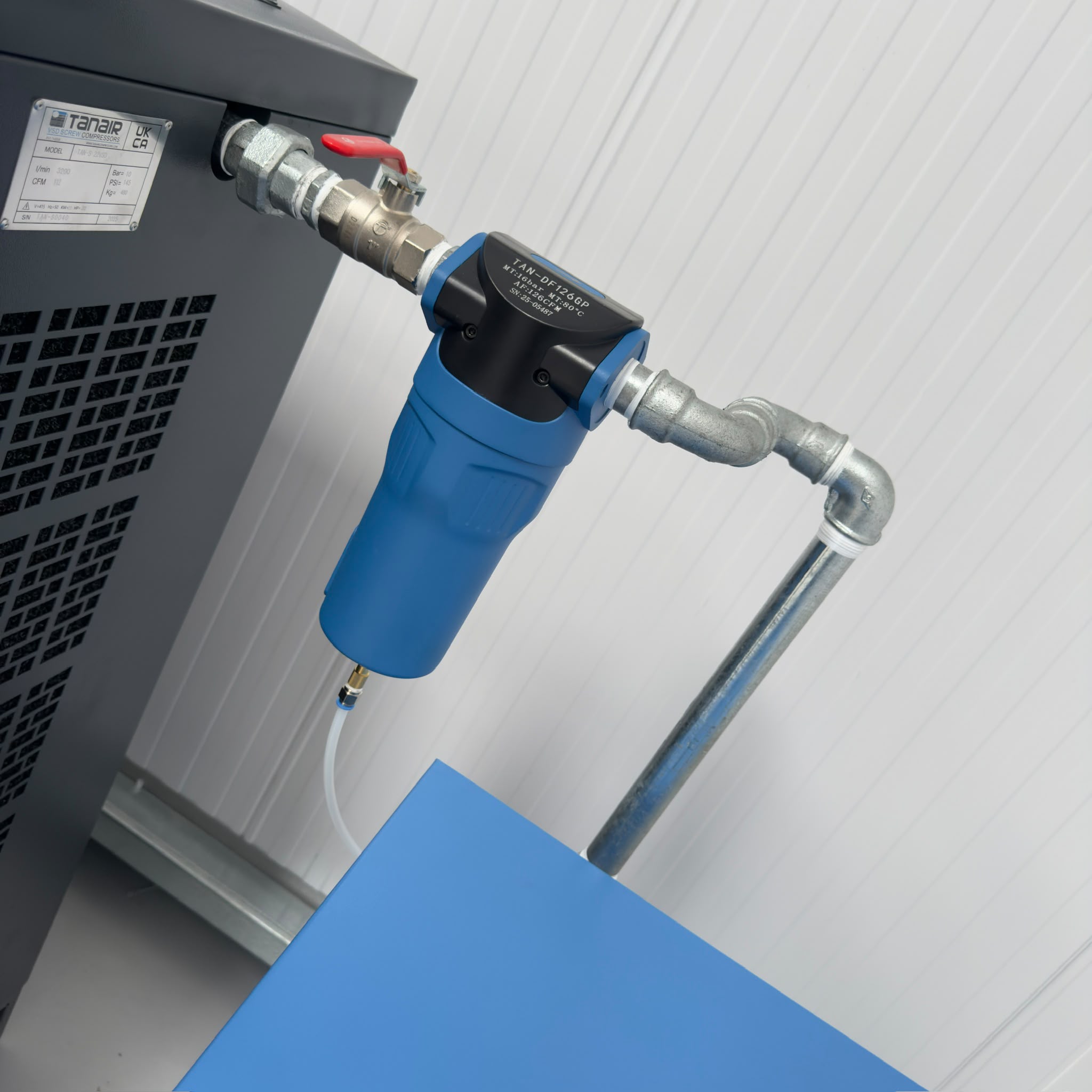

Compressed Air Systems UK supplied and installed a coordinated Tanair compressed-air system for the KUT Machinery showroom in Kidderminster. Compressor capacity, drying, filtration, storage and pipework were planned together around the showroom machinery.
- Tanair TAN-S 22VSD compressor
- TAN-RD-36 refrigeration dryer
- Multi-stage filtration
- 500-litre vertical receiver
- Condensate-management equipment
- Compressed-air distribution pipework
- Testing and commissioning
- Customer handover and ongoing support
Common CNC Air-Treatment Mistakes
CNC Air-Treatment Checklist
- CNC machine make and model
- Required airflow and working pressure
- Required ISO 8573-1 air-quality class
- Required pressure dew point
- Oil and particle limits
- Compressor maximum output
- Air temperature entering the dryer
- Plant-room ambient temperature
- Pipework material and condition
- Drainage and condensate-disposal plan
- Daily operating hours
- Future machinery or airflow growth
Clean, Dry Air for CNC FAQs
Why does CNC machinery need clean, dry compressed air?
Clean, dry air helps reduce moisture, particles and oil contamination before they reach valves, cylinders, optics or other sensitive machine components.
Does every CNC machine need a refrigeration dryer?
No. The required drying method depends on the machine manufacturer's specified pressure dew point and operating conditions. Refrigeration dryers suit many workshop applications, but lower dew-point requirements can need different technology.
How is a refrigeration dryer sized?
Use actual compressor airflow together with working pressure, inlet temperature, ambient temperature and required pressure dew point. Apply the dryer's manufacturer correction factors.
Do I need an oil-free compressor for CNC machinery?
Not necessarily. The correct choice depends on the machine's required oil class and process risk. Some applications can use a suitably treated oil-lubricated compressor system if the delivered air meets the manufacturer's specified quality.
Does a refrigeration dryer remove oil?
Its main function is moisture reduction. Oil aerosols, particles and oil vapour normally require suitable filtration or additional treatment.
Can too many filters cause problems?
Yes. Every filter creates some pressure drop. Unnecessary or undersized stages can restrict the system without providing a useful improvement in the required air quality.
How often should filter elements be changed?
Follow the filter manufacturer's service interval and monitor differential pressure and condition. Do not use one universal change interval for every system.
Does pipework affect CNC air quality?
Yes. Corroded, contaminated or badly drained pipework can add water and debris after the air has already passed through the dryer and filters.
Can Compressed Air Systems UK specify and service the full system?
Yes. We can assess compressor airflow, dryer capacity, filtration, receiver storage, drains and pipework together, and provide planned servicing and replacement elements. 24/7 availability applies to urgent compressor breakdown assistance.
Need Cleaner, Drier Air for CNC Machinery?
Send us the machine model, airflow, pressure and air-quality requirement. We can help assess the dryer, filters, drains, receiver and pipework as one complete system.
