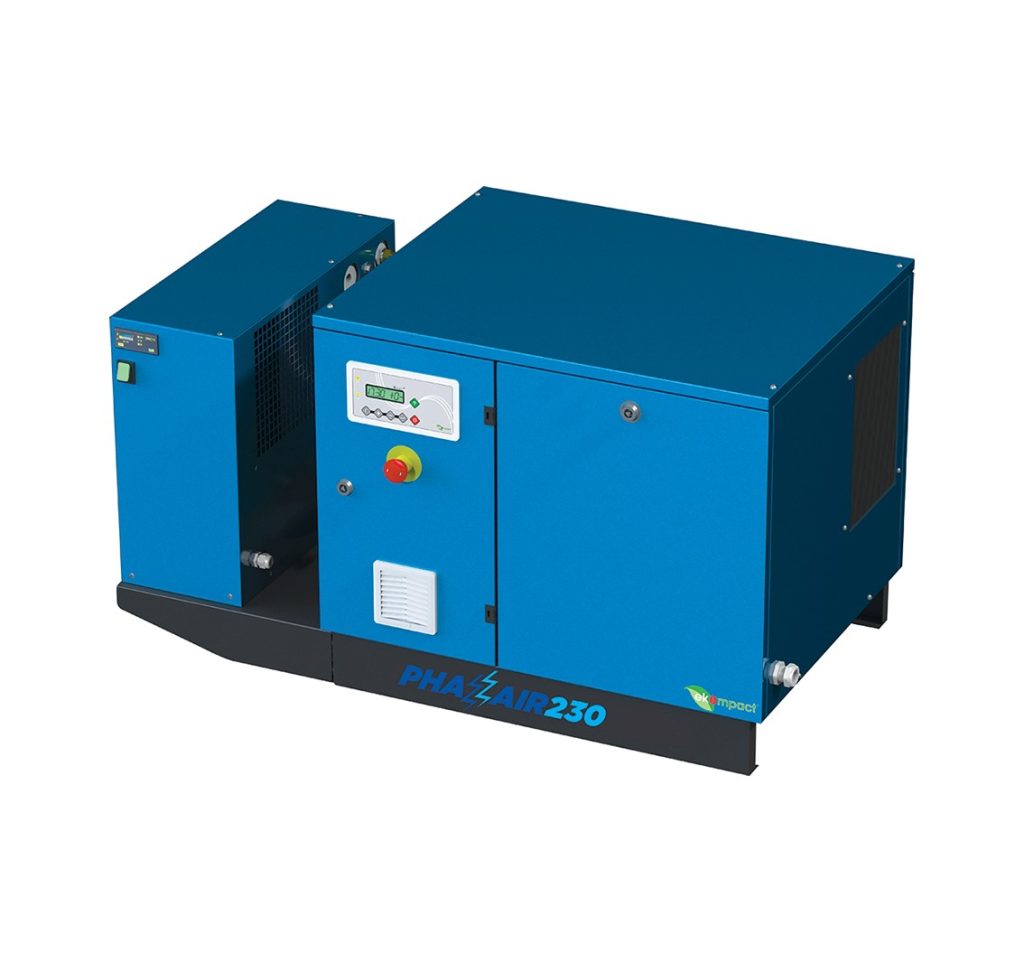

PhaZair-230 5.508 VSD-DF | 27.5 CFM 8 Bar 5.5 kW Single Phase Variable Speed Air Compressor with Dryer
SKU: K-183041022
Product Overview
The PhaZair-230 5.508 VSD-DF is designed for workshops and industrial users that need the output and control of a screw compressor but are restricted to a 230 V single-phase electrical supply. Its 5.5 kW / 7.5 HP belt-driven variable-speed platform delivers up to 27.5 CFM (780 L/min) at 8 Bar and incorporates a refrigerated dryer for a more installation-ready compressed-air package.
Key Features & Benefits
- 5.5 kW / 7.5 HP screw compressor for professional duty
- 230 V single-phase operation for sites without a three-phase supply
- 27.5 CFM / 780 L/min at 8 Bar
- Variable-speed inverter control to better match output to air demand
- Belt-driven compressor platform
- K TRONIC 5 electronic controller with operating and alarm information
- Integrated refrigerated dryer for improved downstream air quality
- 69 dB(A) manufacturer-stated sound level
- 1/2 inch air outlet
- 135 kg net weight
- 1000 x 640 x 630 mm overall dimensions
Motor power
5.5 kW / 7.5 HP
Supply
230 V single phase
Drive / control
Belt driven / variable speed
Free air delivery
27.5 CFM / 780 L/min
Maximum pressure
8 Bar / 116 PSI
Sound level
69 dB(A)
Air outlet
1/2 inch
Configuration
Floor mounted with refrigerated dryer
Net weight
135 kg
Dimensions
1000 x 640 x 630 mm
Technical Specification
| Controller & Intelligent Control |
The PhaZair 230 platform uses the K TRONIC 5 electronic control unit to manage compressor operation. The controller provides operating information including loading/idling status, working hours, oil temperature, working pressure and alarm information, giving the operator a clear view of compressor condition and service needs. |
| Variable-Speed Operation |
A variable-speed inverter regulates compressor output so the machine can better follow changing air demand instead of relying only on fixed-output operation. For sites limited to a 230 V single-phase supply, this gives access to a 5.5 kW industrial screw-compressor platform while helping reduce unnecessary energy use during lower-demand periods. |
| Integrated Dryer |
The built-in refrigerated dryer removes condensed moisture from the compressed-air stream, reducing the amount of water carried into downstream pipework and equipment compared with an untreated compressor-only installation. |
Best For / Typical Applications
Workshops, garages, light manufacturing and production sites that need a variable-speed screw compressor on a single-phase electrical supply, particularly where a built-in dryer is preferred.
Compatibility & Selection
Check the required airflow, working pressure, electrical supply, installation space and downstream air-treatment requirements before ordering. If you are replacing an existing compressor, confirm that the duty cycle and peak air demand are also suitable for the selected model.
