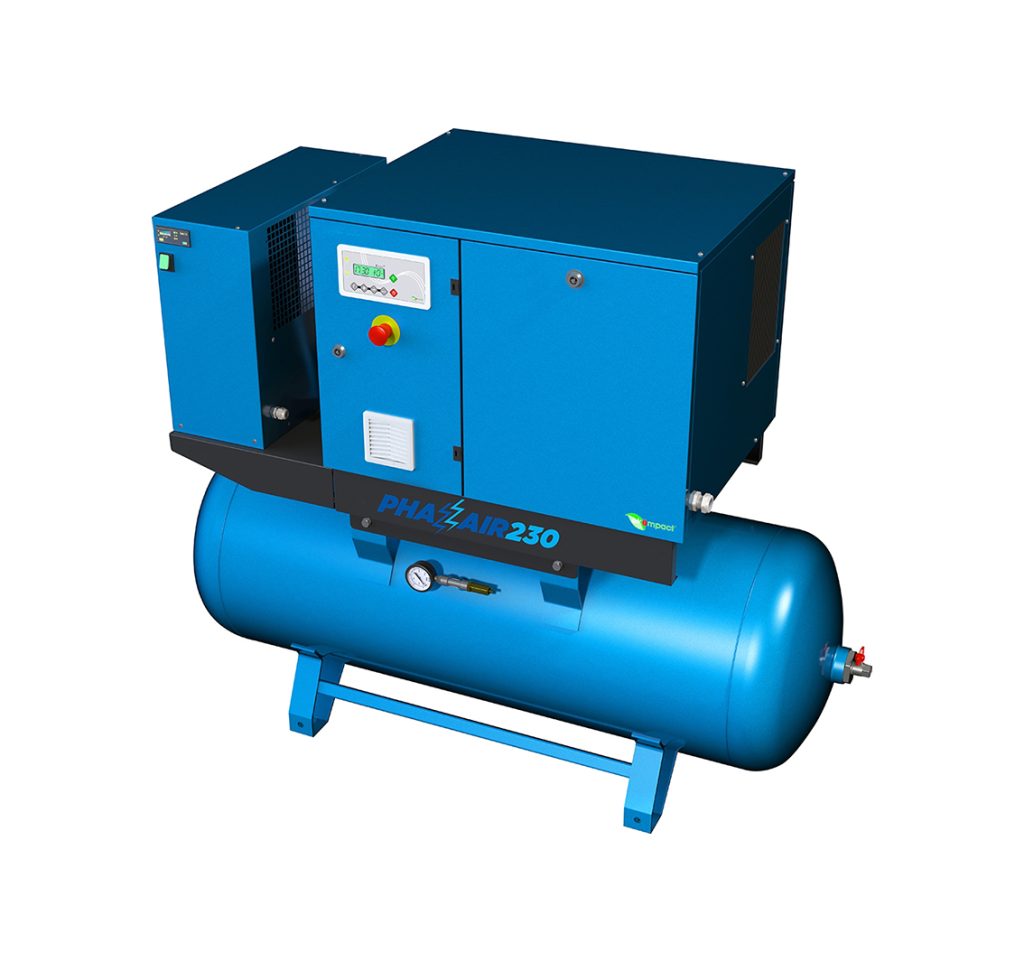

PhaZair-230-5.5-08-270-VSD-DF | 27.5 CFM Variable Speed Rotary Screw Air Compressor with Dryer & 270 Litre Receiver | 8 Bar | 230 Volt
SKU: K-183041024
Brand: PhaZair
27.5 CFM Variable Speed Rotary Screw Air Compressor with Dryer & 270 Litre Receiver
The PhaZair-230-5.5-08-270-VSD-DF is a premium 230V single-phase variable speed rotary screw air compressor delivering up to 27.5 CFM (780 L/min) at 8 Bar. Complete with a 270-litre air receiver and an integrated refrigerated air dryer, this all-in-one compressed air package provides a reliable, energy-efficient solution for businesses requiring clean, dry compressed air without access to a three-phase electrical supply.
Designed for continuous industrial operation, the PhaZair 230 range combines inverter-driven variable speed technology, intelligent electronic controls and low operating noise to maximise efficiency while reducing energy consumption. The integrated dryer removes moisture from the compressed air supply, helping protect downstream equipment, pneumatic tools and production machinery.
Why Choose a Variable Speed Air Compressor?
Unlike conventional fixed-speed compressors, the Variable Speed Drive (VSD) continuously adjusts motor speed to match your compressed air demand. This intelligent control reduces unloaded running, lowers electricity consumption and maintains a more stable system pressure, making it ideal for businesses with fluctuating air demand.
By only producing the air required, a variable speed compressor can significantly reduce running costs while extending compressor life and lowering overall maintenance requirements.
Integrated Air Dryer for Clean, Dry Compressed Air
The factory-fitted refrigerated dryer removes moisture from the compressed air before it enters your distribution system. Supplying clean, dry air helps reduce corrosion, protects pneumatic equipment, improves product quality and minimises maintenance throughout the compressed air network.
Key Features & Benefits
- 27.5 CFM (780 L/min) Free Air Delivery.
- 8 Bar (116 PSI) maximum working pressure.
- 5.5kW (7.5HP) high-efficiency rotary screw airend.
- 230 Volt single-phase operation.
- 40 Amp electrical supply required.
- Integrated Variable Speed Drive (VSD) inverter technology.
- 270-litre horizontal air receiver.
- Integrated refrigerated air dryer.
- Advanced K TRONIC 5 electronic controller.
- Belt-driven transmission for dependable operation.
- Low operating noise of only 69 dB(A).
- Anti-condensation protection system.
- Reduced energy consumption compared with fixed-speed compressors.
- Simple servicing and low maintenance requirements.
K TRONIC 5 Intelligent Compressor Controller
The integrated K TRONIC 5 controller provides continuous monitoring and intelligent management of compressor performance, including:
- Loading and unloading cycle control.
- Operating hour monitoring.
- Oil temperature display.
- Working pressure monitoring.
- Service reminders.
- Fault diagnostics and system alerts.
The controller helps maximise compressor efficiency while simplifying preventative maintenance and day-to-day operation.
Technical Specification
- Model: PhaZair-230-5.5-08-270-VSD-DF
- SKU: K-183041024
- Compressor Type: Variable Speed Rotary Screw Air Compressor
- Configuration: Receiver Mounted with Integrated Dryer
- Power Supply: 230 Volt Single Phase (40 Amp Supply Required)
- Motor Power: 5.5kW (7.5HP)
- Free Air Delivery: 27.5 CFM (780 L/min)
- Maximum Pressure: 8 Bar (116 PSI)
- Air Receiver: 270 Litres
- Dryer: Integrated Refrigerated Air Dryer
- Drive Type: Belt Driven Variable Speed
- Controller: K TRONIC 5 Electronic Controller
- Noise Level: 69 dB(A)
- Dimensions (L × W × H): 1560 × 640 × 1200 mm
- Weight: 202 kg
Typical Applications
- Automotive workshops and garages.
- Engineering and manufacturing facilities.
- CNC machinery.
- Production and assembly lines.
- Packaging equipment.
- Commercial workshops.
- Industrial maintenance departments.
- Businesses requiring clean, dry compressed air from a 230V supply.
Why Buy from Tanair Compressors?
Tanair Compressors supplies professional rotary screw air compressors, air treatment equipment, pipework systems and genuine replacement parts backed by expert technical advice, competitive pricing and fast UK delivery.
If you need help choosing the correct variable speed compressor or designing a complete compressed air installation, contact our experienced team and we’ll be happy to help.
