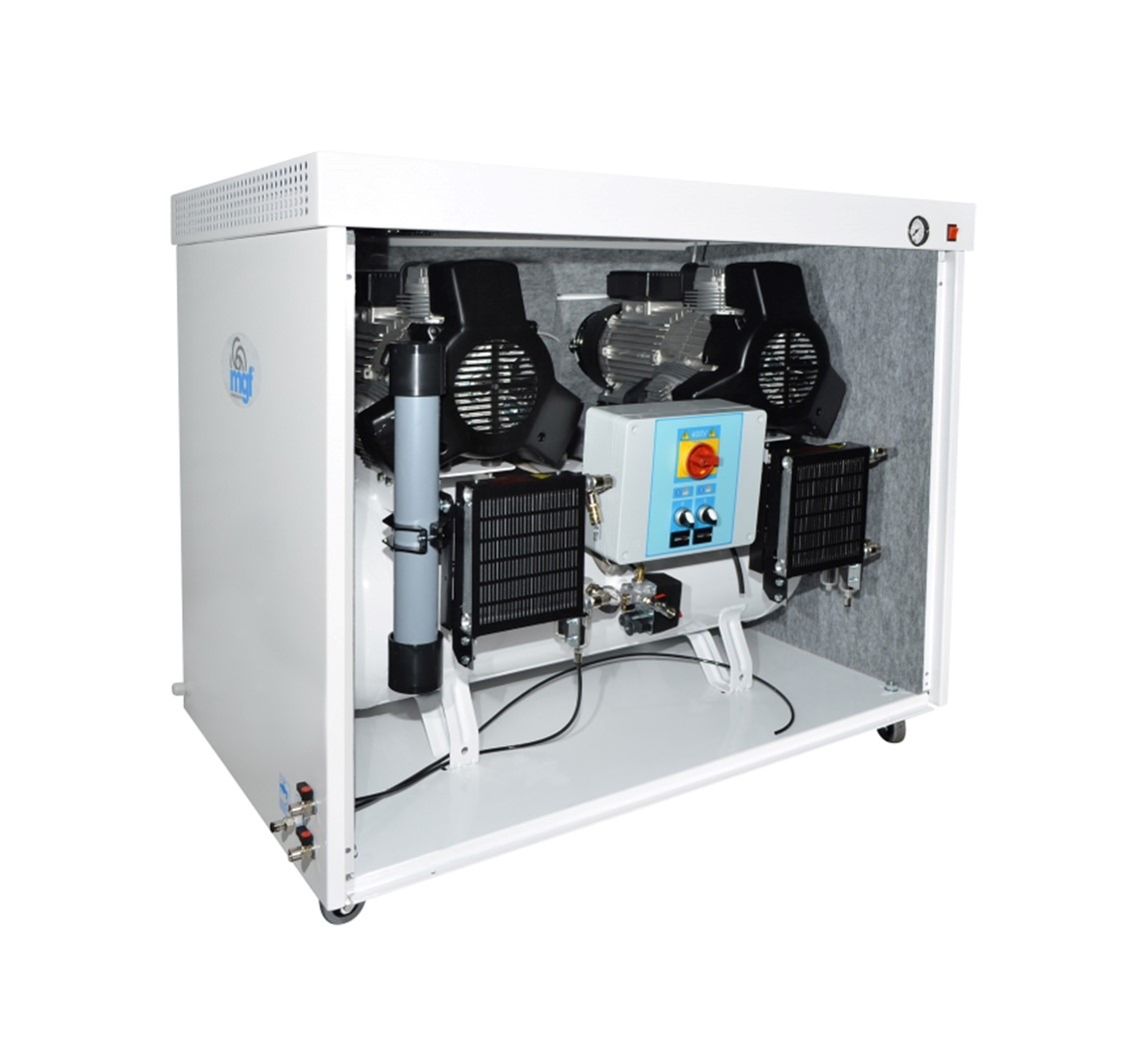

MGF CS100/50 Prime M Tandem Silenced Cabinet with Dryer (230 Volt) | 15.8 CFM Oil-Free Dental Air Compressor
Model: M-PR-CS600-090-MT
Brand: MGF
15.8 CFM Oil-Free Tandem Dental Air Compressor with 90 Litre Receiver, Silenced Cabinet & Integrated Dryer
The MGF CS100/50 Prime M Tandem Silenced Cabinet with Dryer is a premium oil-free dental and laboratory air compressor designed to deliver exceptionally clean, dry and reliable compressed air for critical applications. Featuring a 15.8 CFM (450 L/min) output, 90 litre internally coated air receiver, integrated membrane dryer and ultra-quiet acoustic cabinet, this compressor provides dependable performance whilst maintaining extremely low operating noise levels.
Powered by a 2.2kW + 2.2kW tandem PRIME pump configuration, the system offers outstanding reliability with automatic staged operation, helping to maximise efficiency while providing redundancy should one compressor require servicing. This makes it an ideal solution for busy dental surgeries, laboratories and medical environments where a continuous supply of clean compressed air is essential.
Designed for Clean, Medical-Grade Compressed Air
Using advanced PRIME oil-free compressor technology, the CS100/50 delivers contaminant-free compressed air without the risk of oil carry-over. Combined with an integrated membrane dryer and dual-stage filtration, the system produces air meeting ISO 8573-1 Class 1-3-1, making it suitable for demanding dental and laboratory applications.
The integrated membrane dryer delivers a pressure dew point of approximately -20°C at 5 bar, helping prevent moisture contamination within air distribution systems while protecting downstream equipment.
Key Features & Benefits
- 15.8 CFM (450 L/min) free air delivery.
- 2.2kW + 2.2kW PRIME tandem oil-free compressor pumps.
- 230 Volt single-phase power supply.
- 90 litre internally coated air receiver.
- Ultra-low noise acoustic cabinet (approximately 56 dB(A)).
- Maximum working pressure of 10 Bar.
- Integrated membrane dryer with -20°C pressure dew point at 5 Bar.
- Dual filtration system providing 0.01 micron air filtration.
- ISO 8573-1 Class 1-3-1 air quality.
- Suitable for HTM 2022 compliant installations when supplied with the correct dryer and filtration package.
- Integrated aftercooler for improved air treatment performance.
- Optional desiccant dryer available for -40°C pressure dew point (ISO 8573-1 Class 1-2-1).
Technical Specification
- Model: M-PR-CS600-090-MT
- Free Air Delivery: 15.8 CFM (450 L/min)
- Motor Configuration: 2.2kW + 2.2kW Tandem
- Receiver Size: 90 Litres
- Receiver Type: Internally Coated
- Voltage: 230 Volt
- Maximum Pressure: 10 Bar
- Noise Level: Approximately 56 dB(A)
- Dryer: Integrated Membrane Dryer
- Pressure Dew Point: -20°C at 5 Bar
- Air Quality: ISO 8573-1 Class 1-3-1
Typical Applications
- Dental surgeries.
- Dental laboratories.
- Medical facilities.
- Research laboratories.
- Analytical laboratories.
- Clean air applications.
- Healthcare environments.
Why Buy from Tanair Compressors?
Tanair Compressors supplies premium oil-free dental and medical air compressors, installation services, maintenance, air treatment equipment and genuine replacement parts throughout the UK. Our experienced team can help specify the correct compressor package to suit your exact application and compliance requirements.
If you’d like advice on the MGF CS100/50 Prime M Tandem Silenced Cabinet with Dryer, contact our technical team and we’ll be happy to assist.
