MGF Pure Air Compressors
Explore MGF oil-free compressor families for dental practices, laboratories, CAD/CAM systems, veterinary applications and other specialist installations where air cleanliness, duty and moisture control must be matched to the equipment being supplied.
Choose the MGF Pure Air Family to Suit the Application
MGF Pure Air covers a wide range of oil-free compressor configurations rather than one single machine type. The correct route depends on required airflow, working pressure, duty cycle, noise, electrical supply, moisture specification and whether the installation also requires suction or specialist medical-air treatment.
Use the eight routes below to narrow the range, then size the final compressor around the actual simultaneous demand and the requirements of the connected equipment.
MGF Pure Air Compressor Ranges
How the Main MGF Routes Differ
| Range | Best Starting Point For | Key Selection Check |
|---|---|---|
| GE + Mini Box | Compact installations and smaller dental or laboratory air demands. | Receiver size, noise, dryer requirement and available space. |
| Prime Without Dryer | Oil-free air where drying is handled separately. | Required FAD, duty, pressure and downstream air treatment. |
| Prime With Dryer | Integrated oil-free compressor and membrane drying. | Flow after drying, dew-point requirement and total simultaneous demand. |
| Prime With Desiccant Dryer | Applications needing lower moisture levels than a typical membrane-dryer arrangement. | Required dew point, filtration, pressure and air-quality specification. |

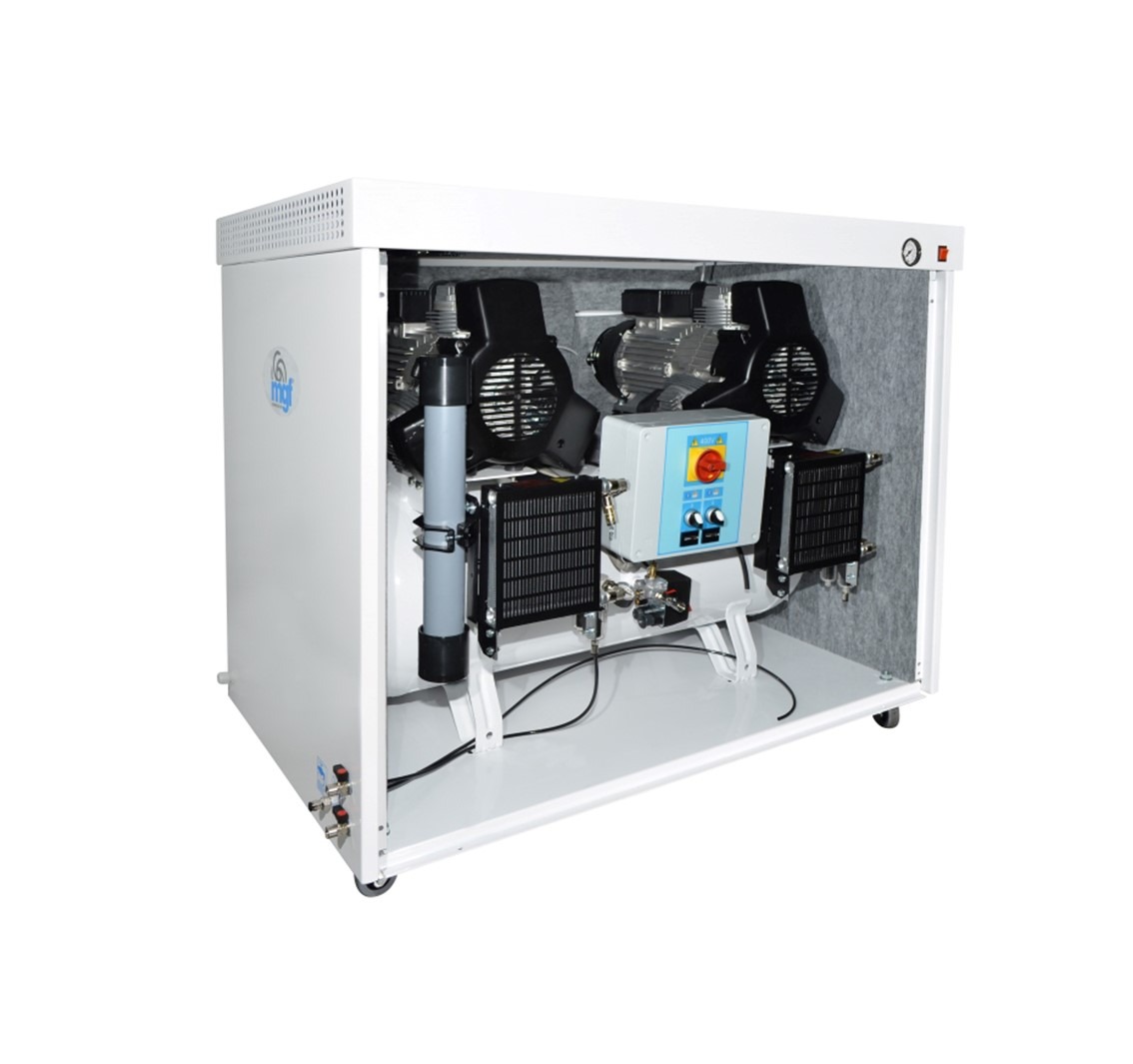

| X-Line | CAD/CAM, milling, laboratories and more intensive air demand. | Continuous duty, 8-10 bar requirements and dryer capacity. |

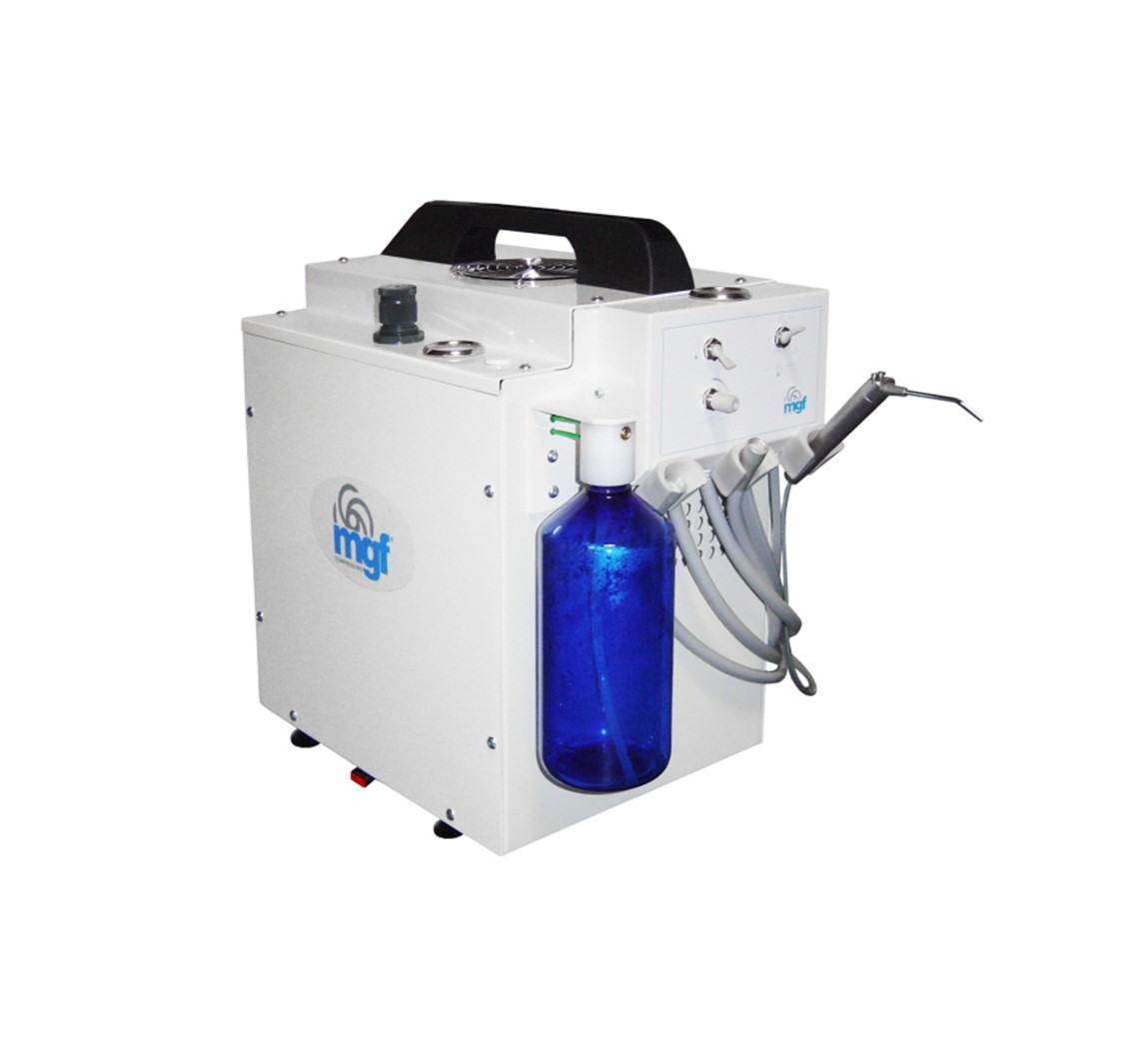

| Veterinary | Portable and compact specialist air requirements. | Flow, portability, noise and connected equipment. |

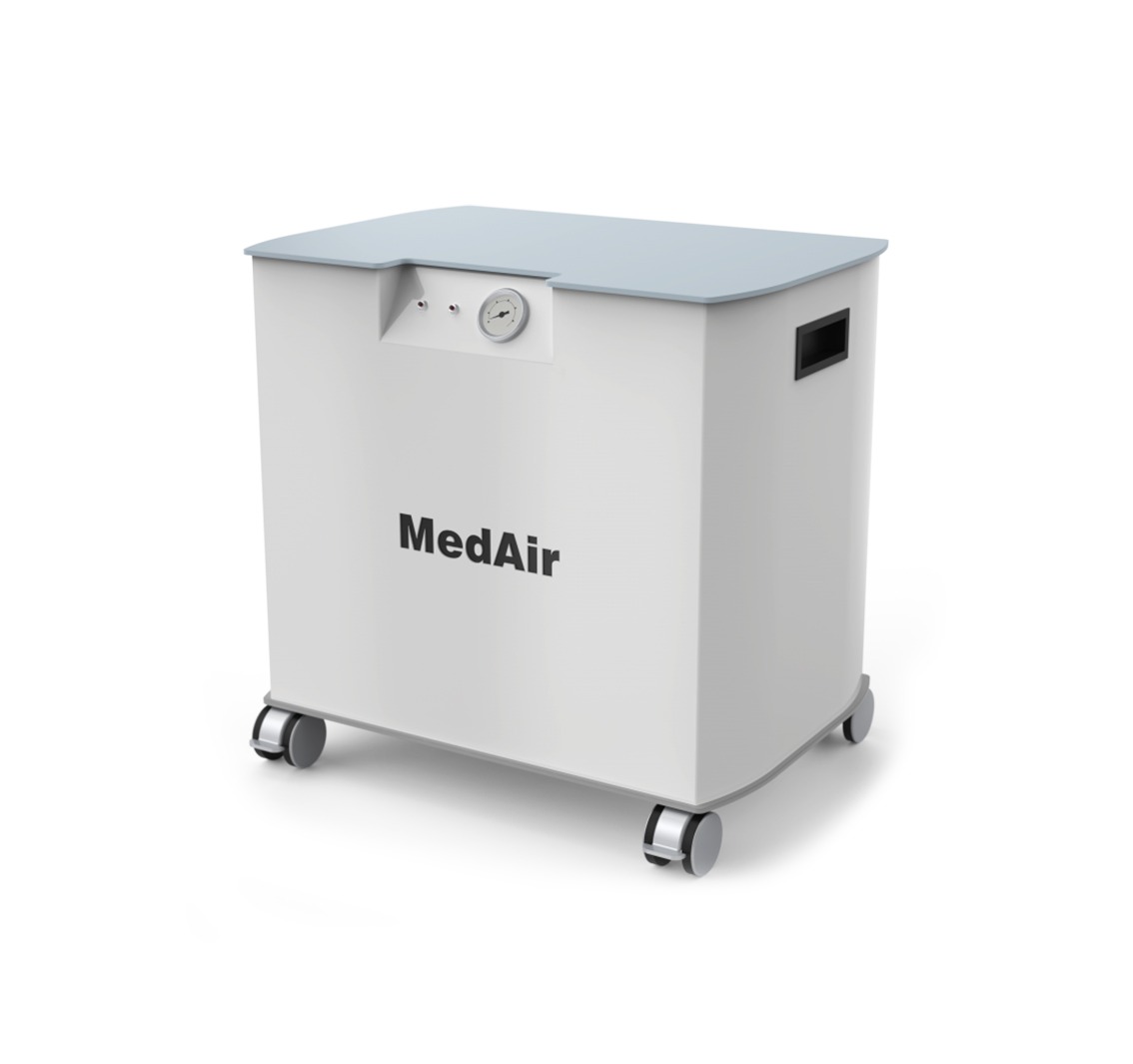

| MedAir | Ventilator and specialist medical-air applications. | Application standard, filtration, dew point, redundancy and commissioning requirements. |
| Combi-Air | Dental practices needing compressed air and suction in a combined system. | Number of chairs, suction type, dryer option and installation layout. |
What to Confirm Before Selecting an MGF Compressor
MGF Pure Air FAQs
Are MGF Pure Air compressors oil-free?
Yes. The Pure Air families shown here use oil-free compressor technology so compressor lubricant is not introduced into the compression process.
What is the difference between the membrane and desiccant dryer routes?
MGF membrane-dryer models are commonly designed around a maximum pressure dew point of approximately -20 C, while selected adsorption/desiccant systems are designed for substantially lower dew points around -40 C. The exact requirement should be confirmed for the application and model.
Which MGF range is intended for CAD/CAM?
X-Line is the specialist heavy-duty family developed for intensive or continuous compressed-air demand, including dental CAD/CAM and milling applications. Final sizing still depends on the equipment flow and pressure requirements.
Does oil-free automatically mean suitable for every dental or medical installation?
No. Oil-free compression does not by itself establish final system suitability or compliance. Drying, filtration, duty, pressure, pipework, commissioning, maintenance and application-specific requirements must also be considered.
Can Compressed Air Systems UK help choose between these ranges?
Yes. Send us the connected equipment, simultaneous demand, required pressure, electrical supply, operating pattern and any stated air-quality or dew-point requirement.
Need Help Choosing an MGF Pure Air Compressor?
Tell us what the compressor will supply, the expected simultaneous air demand, working pressure, electrical supply and required air treatment, and we can help narrow the correct MGF route.
