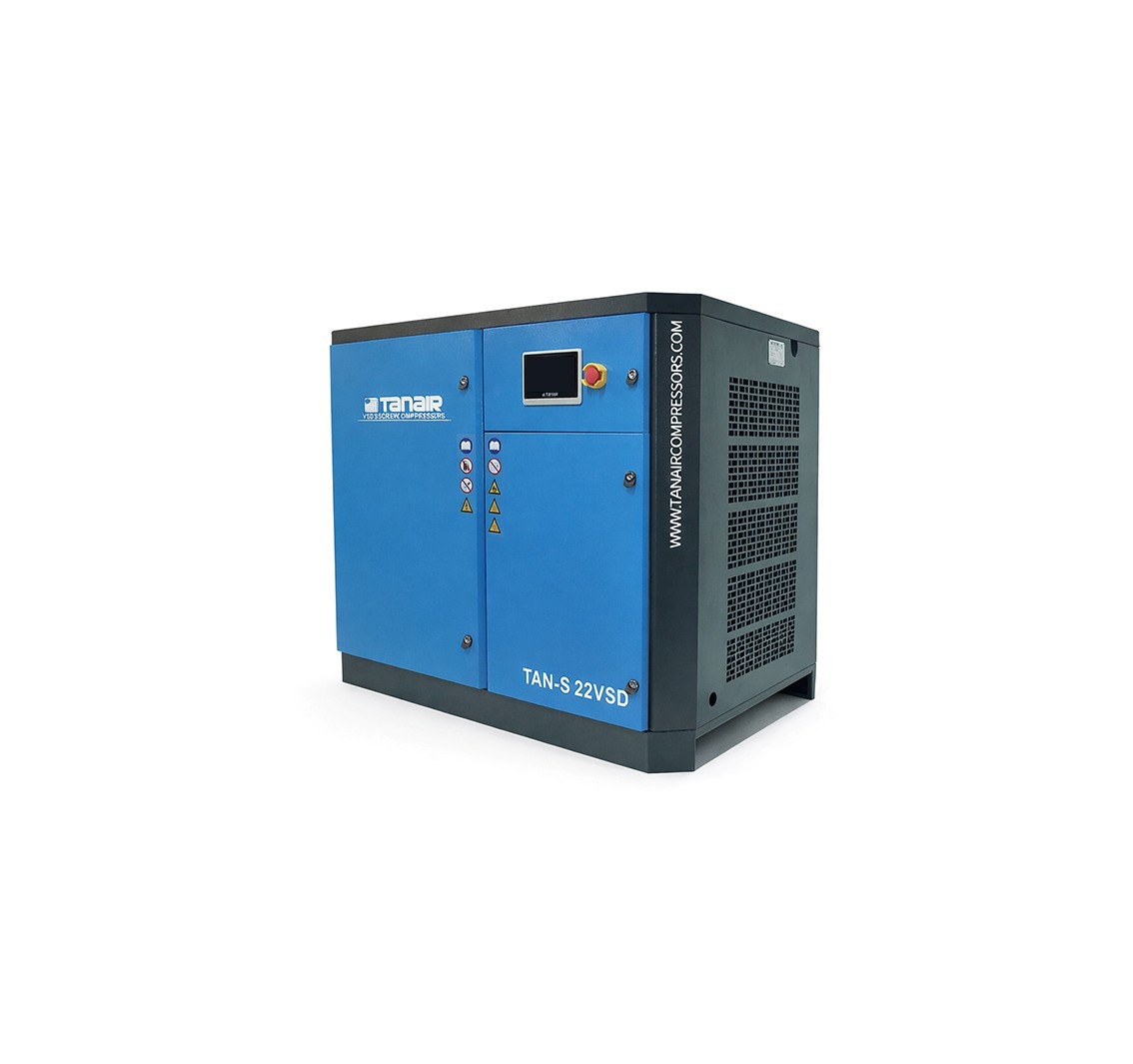

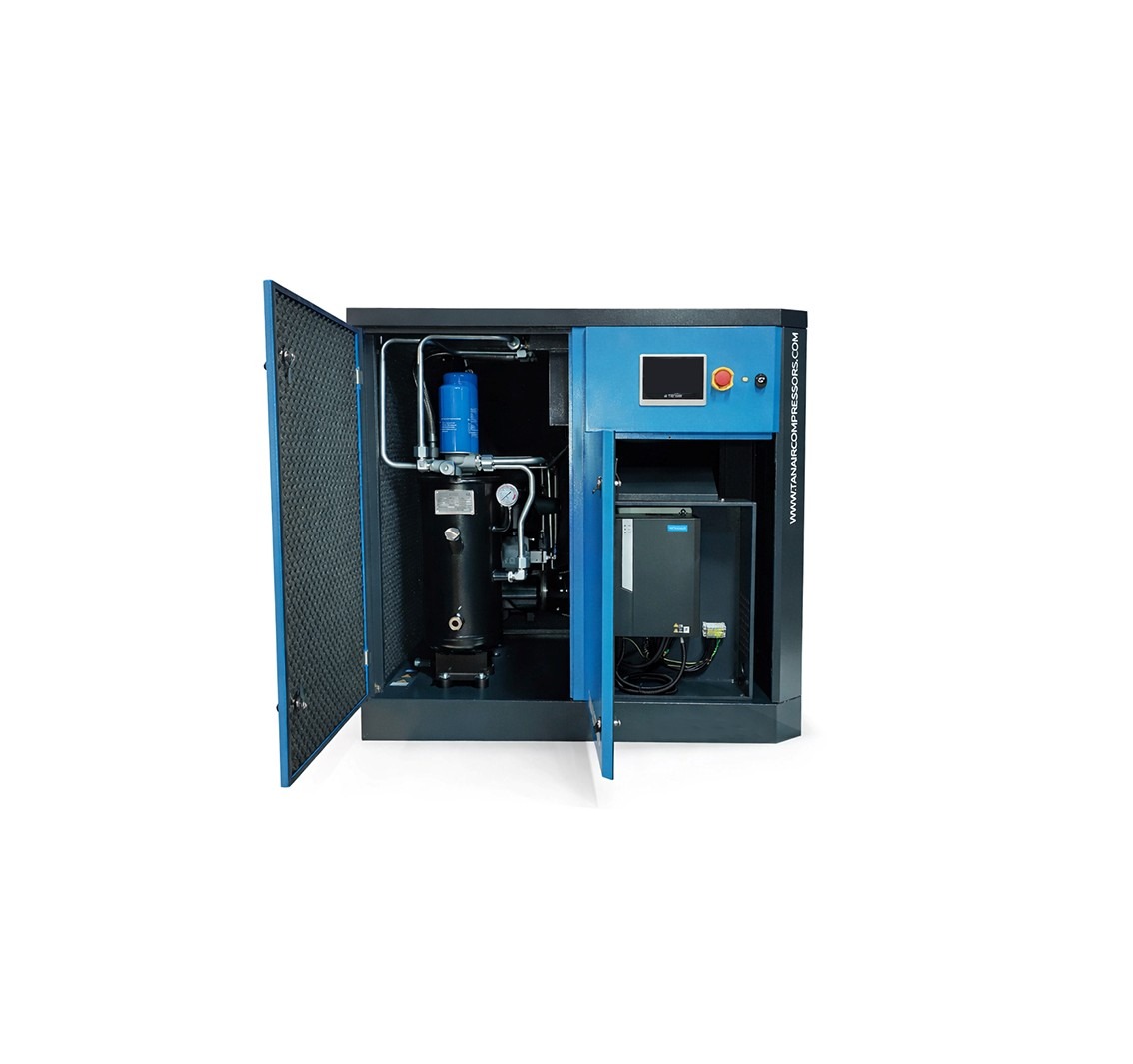

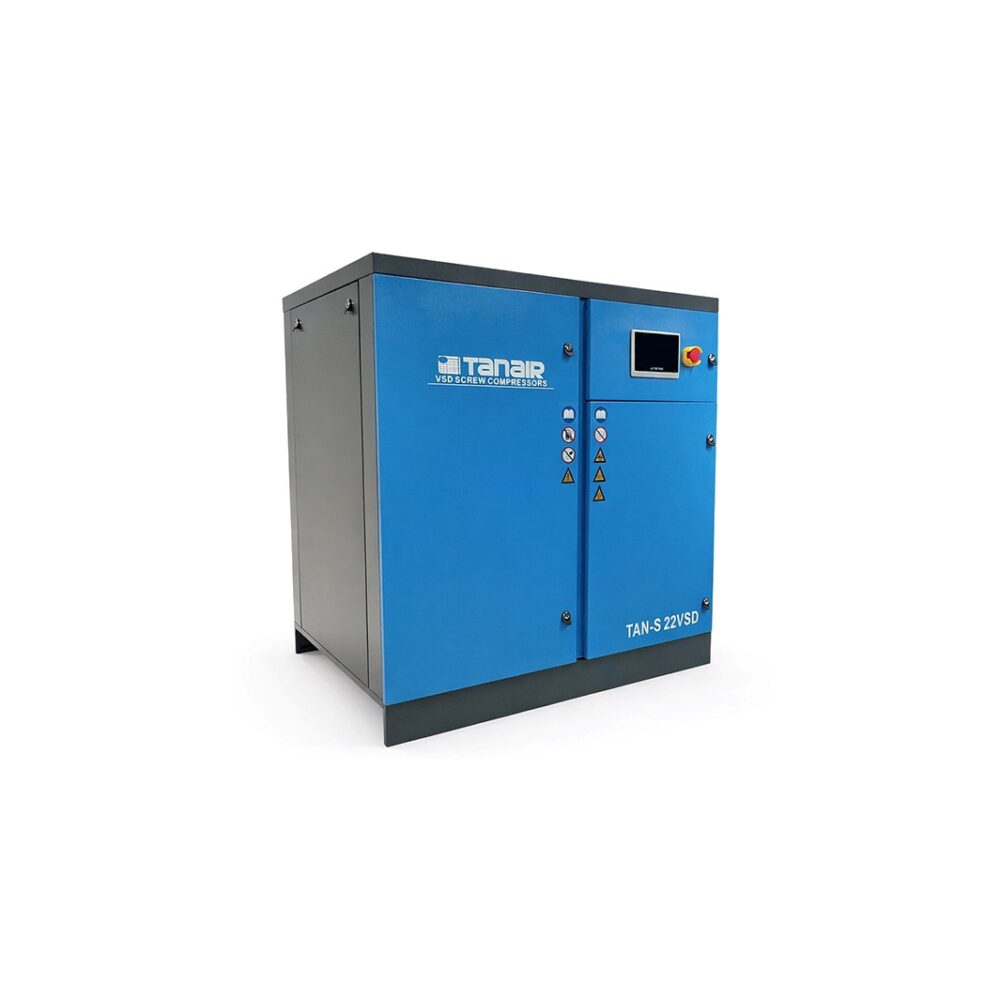

Tanair TAN-S-22VSD (415V) | 112 CFM Variable Speed Screw Air Compressor
SKU: TAN-S-22VSD
Brand: Tanair Compressors
High-Output 22kW Variable Speed Screw Air Compressor
The Tanair TAN-S-22VSD (415V) is a powerful 22kW PM VSD screw air compressor, delivering
112 CFM (3.2 m³/min) at 10 bar for demanding industrial applications. Its advanced
PM VSD control ensures air output only when needed — lowering energy consumption and stabilising system pressure even under variable loads.
This heavy-duty compressor combines a rugged Baosi screw air end with robust IP55 motor protection,
providing dependable, low-noise performance and low maintenance for UK industrial facilities.
Key Features & Benefits
- 22kW (30HP) PM VSD motor
- Free air delivery: 3.2 m³/min (112 CFM) @ 10 bar
- Advanced variable speed energy optimisation
- Stable pressure under heavy use
- Baosi screw air end for industrial durability
- IP55 motor protection
- Air-cooled design
- 415V / 50Hz / 3-phase supply
🔧 What Can This Compressor Run?
Delivering approximately 112 CFM at 8–10 bar, the TAN-S-22VSD is engineered for large-scale industrial environments requiring
high-volume, continuous compressed air supply.
Suitable for:
✔ Large production facilities
✔ Manufacturing and processing lines
✔ CNC machine clusters
✔ Multi-department industrial workshops
✔ High-demand continuous-duty applications
✔ Facilities operating multiple air stations simultaneously
Designed for sustained operation, this model provides the airflow capacity required to support entire production areas without pressure drop or performance instability.
⚙ Built for Industrial Scale Operations
The integrated Variable Speed Drive (VSD) technology automatically adjusts output to match system demand, delivering:
• Significant energy savings under partial load
• Stable system pressure across large pipe networks
• Reduced mechanical wear
• Lower operating costs over time
At this airflow level, energy efficiency and system stability become critical — the TAN-S-22VSD is built to meet those demands.
Ideal For:
• Manufacturing plants expanding production capacity
• Facilities consolidating multiple smaller compressors
• Sites upgrading from fixed-speed systems
• Operations requiring dependable 24/7 compressed air
Need Help Sizing Your Industrial System?
If you’re unsure whether 112 CFM meets your facility’s total air demand, our engineers can assess your usage, calculate system requirements and recommend the correct compressor, dryer and filtration package.
👉 Speak to our team for tailored industrial guidance.
Specification:
| KW | 22 |
| HP | 30 |
| L/min | 3171 |
| CFM | 112 |
| Bar | 10 Bar |
| Psi | 145 |
| dB(A) | TBC |
| Receiver Size | Floor Mounted |
| Outlet G (“) | 1” BSP |
| KG | 500 |
| Product L x W x H (mm) | 1320 x 920 x 1250 |
| Voltage | 415v / 50hz 3 phase |
| Warranty Period | Two years subject to Manufacturers’ T&Cs. |
What’s Included with our Tanair TAN-S 22VSD
- Complete PM VSD screw air compressor unit
- Integrated control system
- Industrial IP55 motor
- Baosi screw air end
Installation, pipework, and electrical connection are not included. We can advise on installation requirements or help specify a complete compressed air solution if required.
Baosi Air End – Performance You Can Rely On
Featuring a high-efficiency Baosi air end:
- Built for high output and reliability
- Excellent longevity with routine care
- Trusted in industrial applications
Fast Return on Investment & Energy Savings
In high-demand systems, energy costs dominate lifetime compressor expenses. The TAN-S-22VSD reduces costs by matching air output to real-time requirements — lowering wasted power and shrinking operating costs.
Many UK workshops achieve a rapid return on investment through lower electricity bills, reduced mechanical wear, and extended service intervals.
Use the Tanair ROI calculator to estimate savings and payback time based on your operating hours and demand profile.
Why Buy from Tanair Compressors?
Tanair Compressors is a UK specialist in compressed air systems, trusted by workshops and manufacturers. We supply only reliable, energy-efficient industrial compressors backed by expert support and responsive service. Buying from Tanair means expert advice, dependable performance, and long-term peace of mind.
All compressors are supplied for use within UK industrial environments and supported by experienced compressed air specialists.
We’re Here to Help – Service, Spares & Ongoing Support
At Tanair Compressors, we don’t just supply compressors — we support them for the long term. We hold
fully stocked service items and spare parts to keep your compressed air system running reliably, and our team is here to help with
technical advice, troubleshooting, and servicing guidance when you need it.
Service Kit for TAN-S-22VSD
Designed for high-demand systems—keep efficiency high with the correct service parts.
➡️ Buy the TAN-S-22VSD Service Kit
Regular servicing protects the air end, maintains efficiency, and helps prevent unplanned downtime. Ordering the correct service kit ensures you have the right consumables when they’re needed.
Not sure which kit you need? Send us your model and we’ll confirm the correct kit before you order.
Ideal Applications
- Large industrial facilities
- Heavy manufacturing
- Multi-machine operations
- Continuous compressed air systems
Is the TAN-S 22VSD Right for You?
This model is ideal if you need reliable compressed air with fluctuating demand throughout the working day. It is particularly well suited to businesses upgrading from a fixed-speed compressor and looking to reduce energy costs without oversizing.
If your operation requires continuous, high-volume airflow at all times, our larger VSD models may be more suitable. Our team can help you select the correct size.
Frequently Asked Questions
How much energy can a VSD compressor save?
Up to 35%, depending on system demand and duty cycle.
How fast does it pay back?
Often within a few years due to lower energy and maintenance costs.
Is this suitable for high-demand industrial use?
Yes — ideal for continuous and heavy duty workloads.
How do I calculate savings?
Use the Tanair ROI calculator with your operating data.
Are VSD compressors good for UK industry?
Yes — especially where demand varies, delivering efficiency and reliability.
Need help choosing or comparing models?
Speak to a Tanair compressor specialist for honest advice and a no-obligation recommendation.
Tanair Compressors – Home of “The Air Compressor that pays for itself”
UK-based support • Genuine service parts • Expert compressed air advice
🔧 Part of the Tanair Industrial Range
This unit forms part of our Tanair VSD air compressor range, engineered for energy-efficient, continuous industrial performance.
