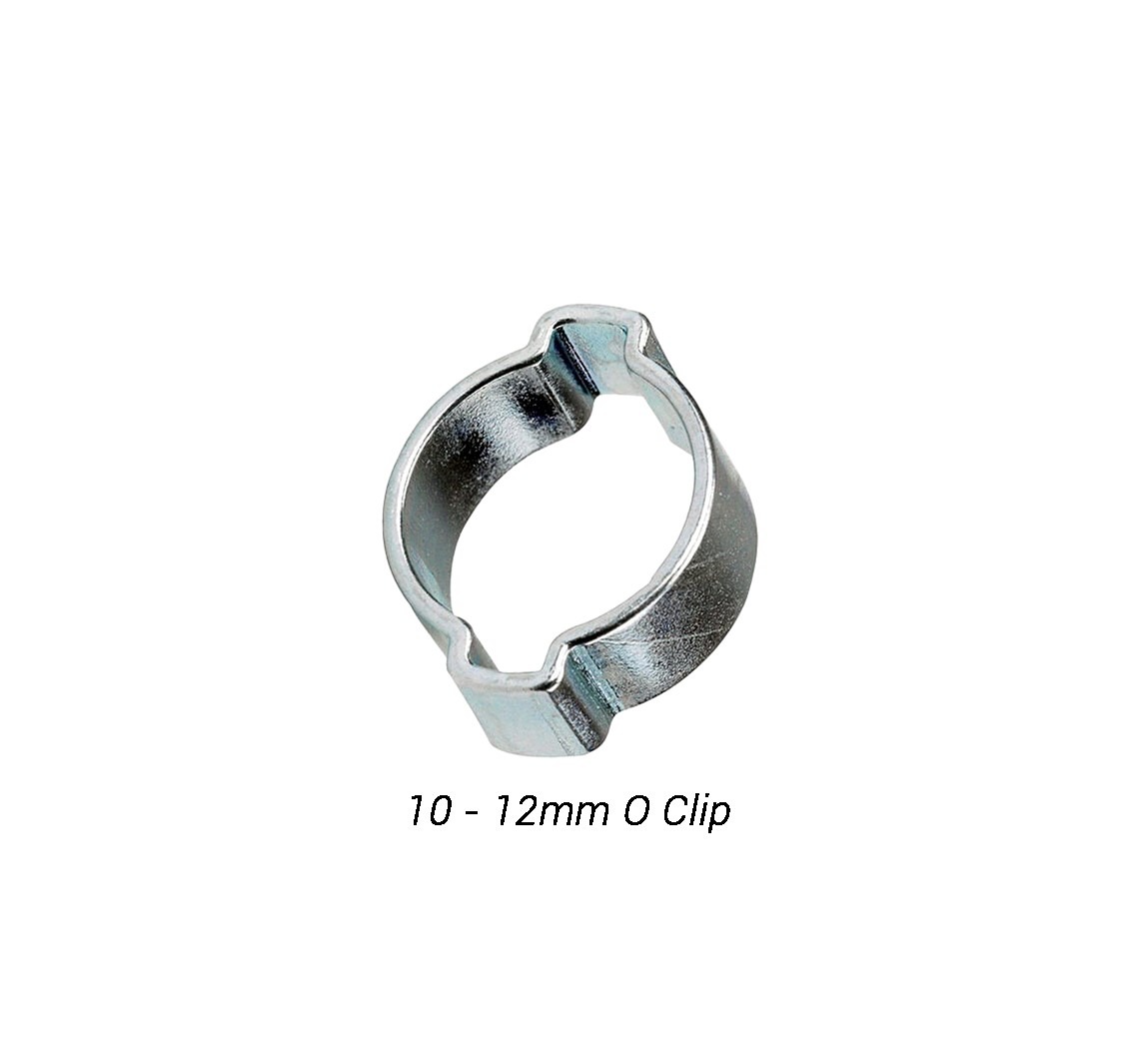

Zinc Plated Double Ear O Clip Part no: Z12 Size: 7/16″ Range: 10-12MM

Availability: In stock (can be backordered)

£0.42 exc vat.

SKU 10-12MMoclip Category

Stock update: 01/11/2024 @ 11:48

Zinc Plated Double Ear O Clip Part no: Z12 Size: 7/16″ Range: 10-12MM

Manufactured to exacting engineering standards they may be used in both static and dynamic applications under both internal and exposed conditions.

Simplicity and high speed of attachment make them ideal for production applications.

APPLICATIONS

Hot/Cold Water connection in domestic washing machines, dishwashers etc.
Coolant pipe connection in consumer and commercial refrigerators and freezers.
Connection brake air lines, fuel pipes and water pumps etc.
Heating and ventilating system in passenger cars and commercial vehicles.
Butane/Propane/Oxygen container connection.
Joints for heating appliances in caravans boats etc.
Connection to welding torches, cutters etc.
Joints for pressurized liquid dispensing and material transfer systems – paint spraying material lines – beer dispensing- pipes from kegs etc.

IMPORTANT

Selection of the correct size of O clip is essential. The inside diameter of the clip should be approximately 0.396875mm (1/64”) larger than the overall diameter of the tube plus fitting in order to obtain maximum joint efficiency.
To achieve the correct results as shown above it is recommended that pincers rather than ordinary pliers are used. Purpose designed O clip pincers with induction hardened jaws are available from stock.

MANUFACTURE

The closely controlled manufacturing processes employed in the production of O clips ensures that these fasteners are free from visible welds, heat affected zones, work hardened areas, and undercuts guaranteeing consistency of properties, performance and constant material thickness.

NON STANDARD ALTERNATIVES

The standard range can be made to order in stainless steel.  We will be pleased to discuss your specific requirements.

SOME ADVANTAGES OF O CLIPS vs. WORM DRIVE & BOLT TYPE HOSE CLIPS

1. The strength and performance of an O clip is the whole of the steel section, and is not dependent on the single thread strength of a bolt or nut on a worm drive.
2. O clips are permanent and tamperproof. They have to be destroyed to be removed.
3. Low unit cost from design simplicity.
4. Lower production costs from faster attachment time.
5. Dimension tolerances are lower and more consistent than conventional fasteners.
6. There are no areas of stress concentration. The heat treatment and manufacturing processes ensure uniformity of properties.
