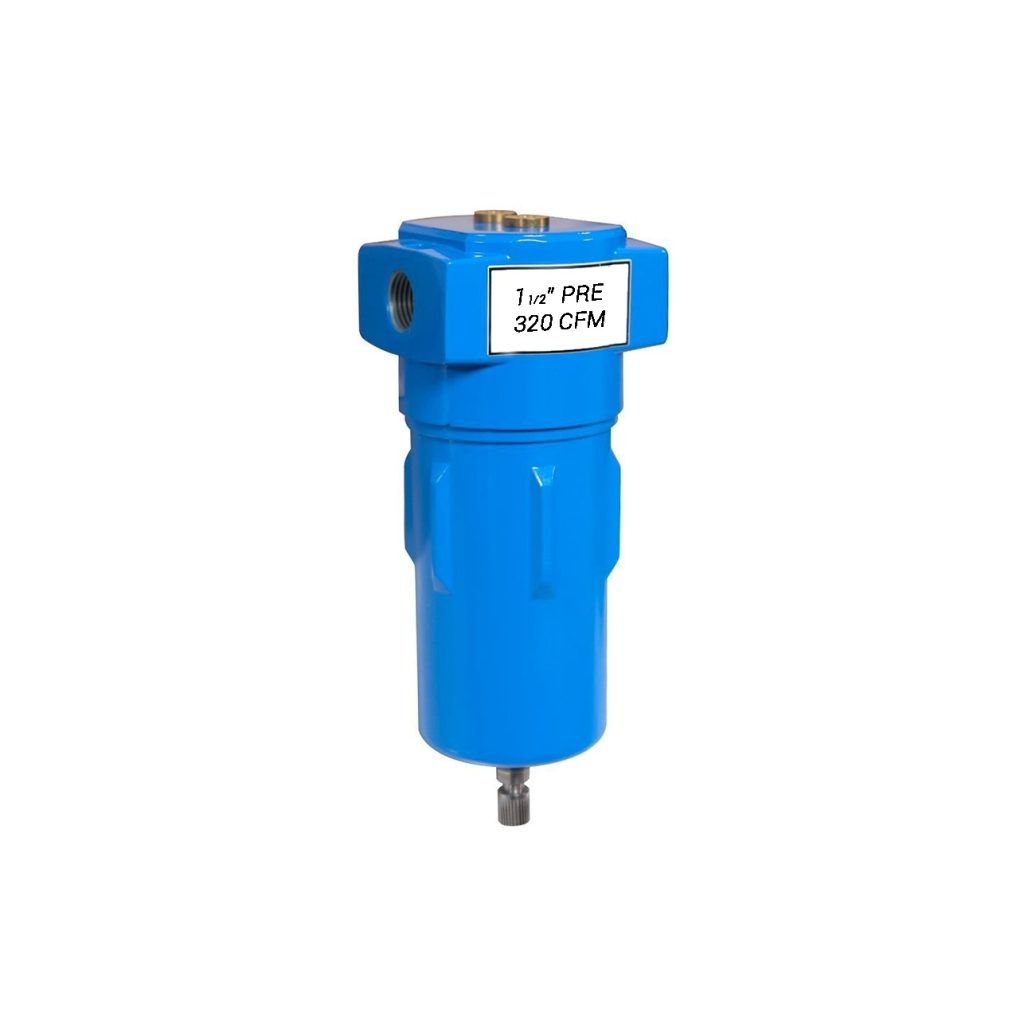

Tanair TANHF320-2 | 11/2″ BSP High Efficiency Filter Assembly 320 CFM Pre Filter (3 Micron)

Availability: In stock (can be backordered)

£261.00 exc vat.

SKU TANHF320-2 Category

Stock update: 01/11/2024 @ 11:48

Tanair TANHF320-2 | 11/2″ BSP High Efficiency Filter Assembly 320 CFM Pre Filter (3 Micron)

Tanair TANHF320-2 | 11/2″ BSP High Efficiency Filter Assembly 320 CFM Pre Filter (3 Micron)

High Quality Filter Housings

Our new range of compressed air filter units have been designed with economy and efficiency in mind, for the removal of oil, water, particulates and gaseous aerosols from compressed air systems using a range of high performance filtration elements. The die-cast filter housings are produced from high-grade aluminium with a special feature of both external and internal surfaces being Alu-Chrome treated. In addition, they are also subject to a tough epoxy baked on paint finish in ‘compressed air blue’ – RAL 5015. These treatments are designed to provide long-term protection, even when subject to the harshest of conditions, ensuring a long service lifetime. Optional electronic or pneumatic differential pressure gauges can be fitted as required. The oil/water condensate is removed via a highly efficient robust brass drain assembly with the built-in capability to attach a 6mm diameter nylon condensate discharge line.

Filter Media

Our elements are manufactured with ‘pleated’ filter media. Pleated media has four times the amount of cross[1]sectional surface area compared to conventional wrapped or rolled media. The pleated media gives a much lower pressure drop. This in turn will save energy as the compressor doesn’t have to work as hard to get the air through the filter and with four times more media significantly longer service life is obtained. These elements provide impressive filtration efficiencies from 99.99% to 99.99999% with a further grade being specific to oil/aerosol removal down to 0.003mg/m utilising activated carbon technology. All elements are manufactured with polished aluminium end caps, which are stronger and better suited to any elevated temperatures.

General Information

Maximum recommended operating temperature of 60˚C
Minimum recommended operating temperature of 1˚C
Maximum recommended operating temperature of 16 bar
Filters come complete with high quality brass auto drain assembly – zero loss
Differential pressure gauge optional
All filters have aluminium end caps and brass tie rods
Filter elements are made with ‘pleated’ media for long service life
All filter housings are CE marked and PED 97/23/EC compliant

Images shown are for illustration purposes only, one pre filter supplied per item ordered.

Image shown for illustration purposes only, one post filter supplied per item ordered.

Type Pre Filter
CFM 320
Port Connection 1 1/2″
Filter Grade 2
Particle Removal Particle removal down to 3 micron (99.99%)
Normal Initial Pressure Drop 0.03 bar g





Warranty

If you have an issue with any item purchased from Compressed Air Systems UK or Tanair Compressors, please get in touch with us as soon as possible. Most of our items come with a 12 month* warranty unless otherwise stated. Please see our “specification” tab for further information, of your warranty period.

Our warranty motto:
“No Quibble, No worries and nothing hidden! Reliability we stand by, service when you need us! Reliability and service you can depend on!”
Our questions to you:

Is your item faulty?

Do you have a Warranty issue?

How can we help?

*Conditions apply, please Contact us for further information or complete the below form.

Are you looking for service spares, lubricants, spare parts, help, or anything else for the above product? Complete the below form, and a member of our team will come back to you.

If possible, please include the SKU.

Shipping and Delivery

UK Mainland Delivery costs:

When adding an item to your basket, our website will calculate your delivery charged based on location and weight. If you are unsure, please see ”Basket totals” for confirmation.

Please be aware, our cut off time for orders to be processed the same day is 2:00 PM, if your order is URGENT, please reply to your order confirmation and we will try our best to accommodate your request.

Delivery is FREE on all orders placed via our website of £700 or more*.

Please be advised, in most cases a courier will be used. This will be confirmed on your shipping confirmation email.

For stocked items, please allow 2 – 3 days for delivery. For none-stocked items, please allow a little longer, we will contact you to confirm any additional charges and your delivery date.

*UK Mainland Only.


UK Delivery Costs Outside of Mainland UK :

Deliveries to the following locations will incur additional charges and may take up to two working days longer:

  • The Scottish Highlands & Islands
  • The Isle of Wight
  • The Isle of Man
  • Northern Ireland

A delivery charge will apply on ALL orders placed by other means, such as adverts on other market selling places, quotation, pro/forma invoice or unless mentioned otherwise. We reserve the right to implement a delivery charge may apply for none stocked items, please contact us for further information.


UK Standard Delivery Further Information:
You can have your orders delivered to a home or work address that’s convenient for you, including Hospitals, Airports and Prisons.

You can enter delivery instructions when you’re placing your order and we will ensure to pass onto our courier, however Compressed Air Systems UK are not liable for any parcels that are lost or stolen if specific delivery instructions are left for the carrier.

PLEASE NOTE THAT DURING FESTIVE SEASONS OR BANK HOLIDAYS, DELIVERIES WILL TAKE LONGER THAN USUAL. DELIVERIES DURING THIS TIME ARE DELIVERED WITHIN 9 WORKING DAYS OF PLACING YOUR ORDER (EXCLUDING SUNDAYS), WE WILL CONFIRM THE EXPECTED DELIVERY DATE WHEN YOU PLACE YOUR ORDER.

We are unable to deliver on Bank Holidays so please allow an extra working day for this.

Delivery will take place between 07:00 and 17:00 and in most cases a signature may be required. If nobody is available when your parcel is delivered and there isn’t a safe place to leave the parcel, the delivery driver will leave a calling card with instructions on how to rearrange delivery.

Here at Compressed Air Systems UK, we provide an extensive range of all things compressed air. With over 30 years experience we have whatever you need, fantastic knowledge, buy from our selection of the latest air compressors and air compressor parts, to bespoke installations, services and repairs of air compressors. Our experts are here to help.

For further information on our company, please see our brochure below.

Compressed Air Systems UK Introduction Brochure

Weight 1 kg
