Do CNC Press Brakes Need Compressed Air?
Some press brakes need a permanent compressed-air supply for clamping, guarding, support or automation, while others use very little air or none at all. The machine specification — not the bending-drive type alone — determines the real requirement.
The Short Answer
Many CNC press brakes use compressed air, but not every machine requires the same supply. Pneumatics may be used for tooling, clamps, guarding, support systems, back-gauge functions, automation or auxiliary equipment.
A hydraulic or servo-electric bending system does not automatically mean the machine has no compressed-air requirement. Conversely, some simpler machines can have little or no pneumatic demand.
What Is Compressed Air Used for on a Press Brake?
Do All CNC Press Brakes Use Air?
| Machine Type | Possible Air Use | What to Confirm |
|---|---|---|
| Hydraulic press brake | May use pneumatics for clamping, guards, supports or auxiliary functions. | Check the machine's options and fitted automation. |
| Servo-electric press brake | Main bending drive can be electric while pneumatic accessories still use air. | Do not assume electric bending means no air connection. |
| Basic/manual machine | May have very low or no compressed-air demand. | Confirm whether any clamping or safety accessories use air. |
| Automated press-brake cell | Robots, grippers, supports and tooling can materially increase demand. | Assess the whole cell, not just the press-brake chassis. |
What Pressure Does a Press Brake Need?
The exact operating pressure must come from the manufacturer. The pressure available at the machine can be lower than the compressor discharge pressure because dryers, filters, regulators, pipework, hoses and fittings all create some pressure drop.
- Confirm the minimum pressure required at the machine inlet.
- Check whether the machine requires a local pressure regulator.
- Measure pressure while pneumatic functions are actually operating.
- Allow for pressure drop through dryer and filtration equipment.
- Check pipe diameter and total distribution distance.
- Avoid raising compressor pressure simply to compensate for a restrictive system.
How Much Airflow Does a Press Brake Use?
There is no reliable generic CFM figure for all press brakes. Air consumption depends on the model, pneumatic functions, cylinder sizes, cycle frequency and level of automation.
Many press-brake pneumatic functions are intermittent, which means short-term peak demand can be more important than the average flow over an hour.
For Peak Demand
- Number of pneumatic movements per production cycle
- Peak airflow during clamp or actuator movement
- Duration of the peak event
- Receiver and pipework volume available close to the machine
For Compressor Capacity
- Average and sustained workshop airflow
- Other machines using air simultaneously
- Required working pressure
- Production hours and cycle frequency
Why Clean, Dry Air Matters
Pneumatic valves, cylinders and clamping systems can be affected by water, particles and oil contamination. The required treatment level should come from the press-brake manufacturer or automation supplier.
Drying
A refrigeration dryer is suitable for many workshop applications, provided its achievable pressure dew point meets the machine requirement. If the specification calls for significantly drier air, another drying technology may be required.
Filtration
Filter stages should be selected for the required particle and oil cleanliness, actual airflow and acceptable pressure drop rather than added automatically.
Can a Press Brake Share a Compressor With a Laser Cutter?
Potentially, yes — but the laser can be the dominant compressed-air user, particularly if compressed air is approved as an assist gas.
Choosing the Right Compressor
| Factor | What to Check | Why It Matters |
|---|---|---|
| Delivered airflow | Usable CFM or m³/min at the required pressure. | Confirms the compressor can meet actual demand. |
| Point-of-use pressure | Minimum inlet pressure after system losses. | Supports reliable clamping and actuation. |
| Duty cycle | Production hours and pneumatic-cycle frequency. | Matches compressor technology to real use. |
| Other machinery | Lasers, tools, automation and additional CNC equipment. | Prevents sizing one machine in isolation. |
| Air quality | Required dryness, particle and oil cleanliness. | Determines dryer and filtration arrangement. |
| Future demand | Known machine additions or longer shifts. | Helps avoid premature system replacement without excessive oversizing. |
Fixed Speed or Variable Speed?
Fixed Speed
Can suit a workshop where overall compressed-air demand is steady and predictable for long periods.
Variable Speed
Can suit a press-brake workshop where demand changes as lasers, press brakes, tooling, automation and general workshop users cycle on and off.
The better choice depends on the complete site's minimum, average and peak demand rather than the press brake alone.
Pipework and Point-of-Use Connection
A correctly sized compressor can still appear inadequate if the press brake is connected through restrictive pipework, long small-bore hose or undersized couplings.
- Size the main and branch pipework for total realistic workshop flow.
- Provide suitable local isolation.
- Use a regulator only where the machine specification requires one.
- Provide drainage and treatment in the correct locations.
- Use a final flexible connection suitable for movement, vibration and machine requirements.
- Leave practical access for servicing and future modification.

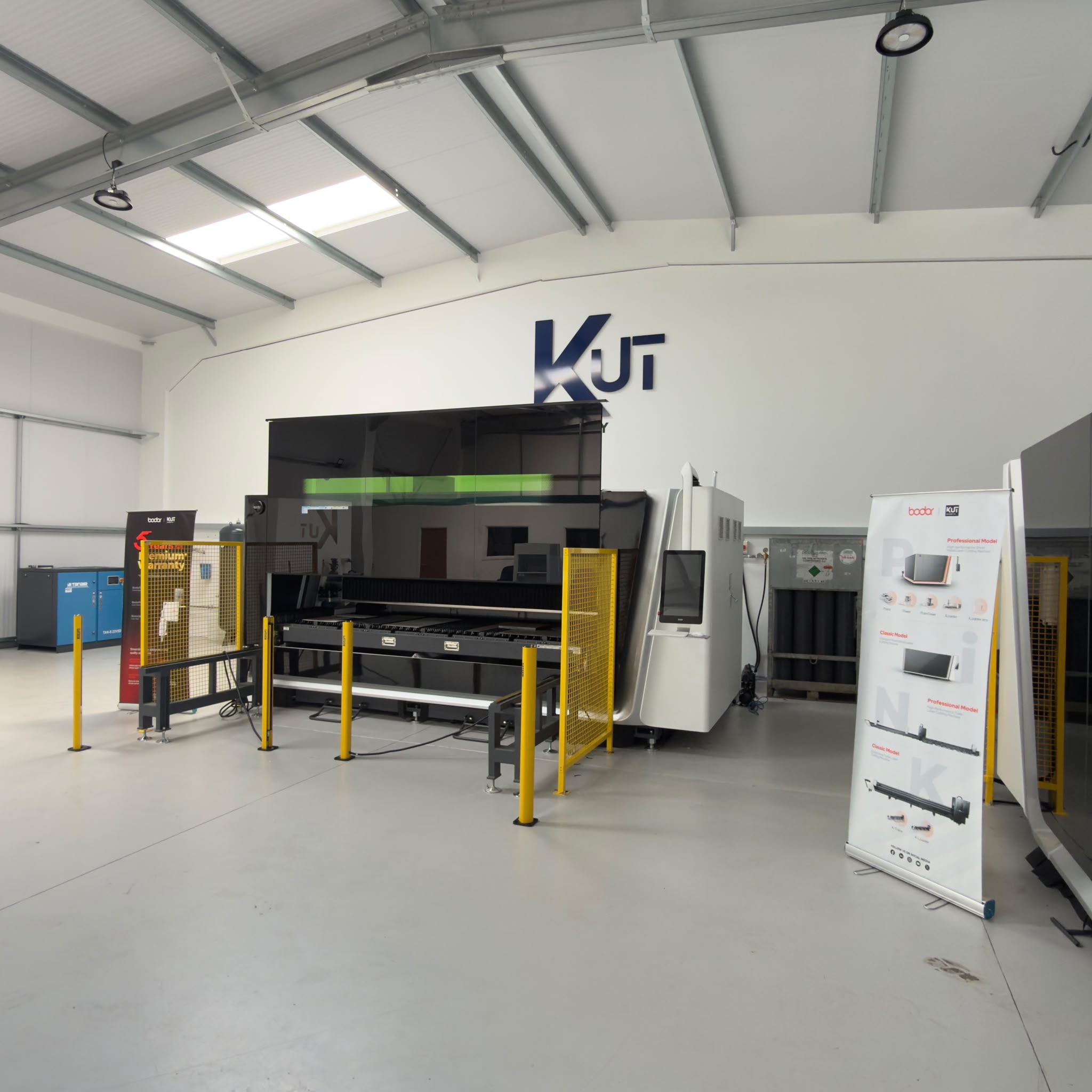

Real Manufacturing Example: KUT Machinery
KUT Machinery supplies CNC laser cutters, press brakes, deburring equipment and associated manufacturing systems. Compressed Air Systems UK supplied, installed and commissioned a coordinated Tanair compressed-air system for its Kidderminster showroom.
- Tanair TAN-S 22VSD compressor
- TAN-RD-36 refrigeration dryer

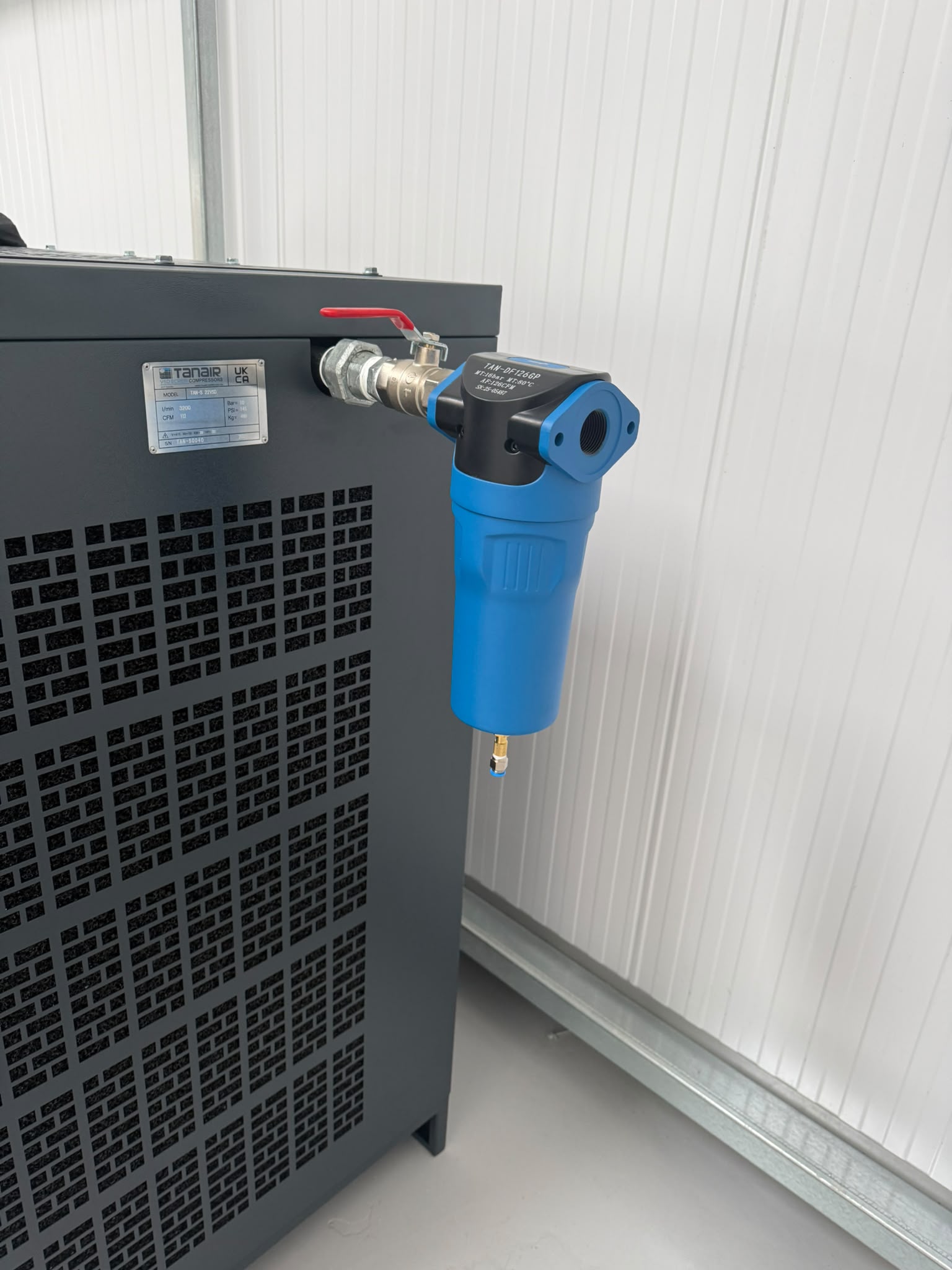

- High-efficiency filtration
- 500-litre vertical air receiver

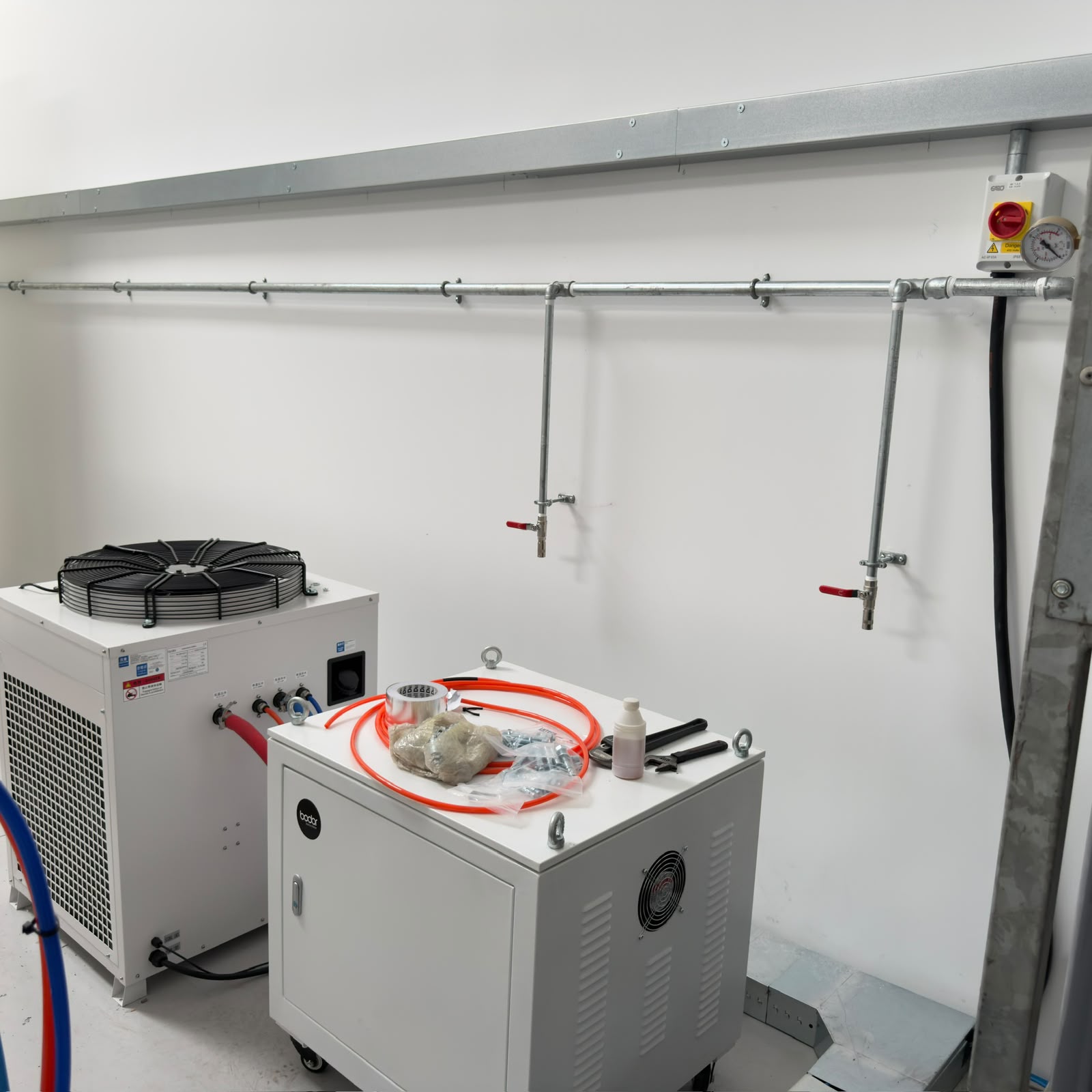

- Compressed-air distribution pipework
- Testing and commissioning
- Customer handover
- Ongoing service support
The useful lesson is not that every press brake needs a 22 kW compressor. The showroom system was selected around the combined requirements of several items of manufacturing equipment.
Common Press-Brake Air-Supply Mistakes
Press Brake Compressed-Air Checklist
- Press-brake manufacturer and exact model
- Required inlet pressure
- Required airflow or air consumption
- Pneumatic functions fitted
- Cycle frequency and production hours
- Automation or material handling fitted
- Other machines on the same air system
- Required air-quality specification
- Pipework distance and diameter
- Planned future machinery
CNC Press Brake FAQs
Do all CNC press brakes need compressed air?
No. Requirements vary by machine design and options. Some use air for tooling, clamping, guards, support or automation, while others have little or no pneumatic demand.
What pressure does a CNC press brake need?
Use the machine manufacturer's stated minimum inlet pressure and check that this pressure is maintained while the pneumatic functions are operating.
How many CFM does a press brake use?
There is no universal CFM figure. Consumption depends on model, fitted pneumatic equipment, cylinder sizes, cycle frequency and automation.
Does a servo-electric press brake need compressed air?
It may. The main bending drive can be electric while pneumatic clamping, guarding, supports or automation still require compressed air.
Does a press brake need a refrigeration dryer?
Only if the machine's required pressure dew point can be achieved by refrigeration drying. The dryer type and filtration should be selected from the manufacturer's air-quality specification.
Can a press brake share a compressor with a laser cutter?
Potentially, provided the system can meet combined simultaneous airflow, the highest required pressure and the most demanding air-quality requirement.
Can I use my existing workshop compressor?
Possibly. It needs enough spare delivered airflow, pressure, receiver capacity and treatment capacity while all other realistic users remain connected.
Is a VSD compressor suitable for a press-brake workshop?
It can be, particularly where total workshop demand changes as different machines and pneumatic functions operate throughout the day.
Does pipework size affect press-brake operation?
Yes. Undersized or restrictive pipework can cause pressure loss at the machine, especially during short high-flow pneumatic events.
